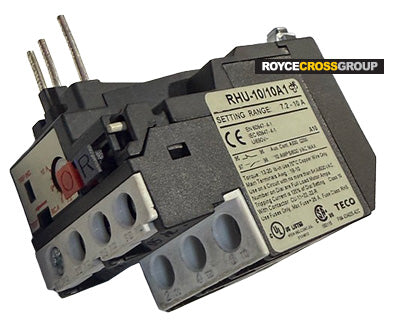

Thermal overload 7.2 to 10 amps - suits CU-9 to CU-32R contactors

Robust and CE approved, Teco's RHU10 series of thermal overload relays boast a configurable trip point.

The thermal overload relays are available from 0.3 amps to 185 amps. They provide phase failure protection.

SPECIFICATIONS

Type: Thermal overload

Setting range: 7.2 amps to 10 amps

Terminal type: pin (side); M5 screw (load side)

Contacts configuration: 1a + 1b

Maximum wire size: AWG8 (8.4mm2)

Compatibility: Suits CU-9 to CU32R contactors

Units: Each
