Chain to suit all applications
Too many to list - that's what comes to mind when you mention roller chain at Royce Cross Group. Standard, Agri-tuff, agricultural, heavy duty, attachment, BS, BS conveyor, double pitch, leaf and lube free are just the start of our range.
Chain has two functions: power transmission and conveyance. And Royce Cross Group has all the components to cover all industries and applications with high performance.
What sets Royce Cross Group apart from its competitors is our expert team will cut chain to size and will assist in matching complimenting parts, from attachments to sprockets, bushes, belts, pulleys and more.
When selecting chain, consider the type of application, shock load, power source, sprocket rpm and shaft diameter, distance between sprockets, noise constraints and lubrication. Our team will assist in the selection process if needed. Sprockets and other components can be custom machined to suit each customer's individual needs.
Watch the video below to learn more about the basics of chain.
Chain comparison
Royce Cross Group carries a vast range of roller chain for many applications. The chain line-up includes standard, lube-free, heavy duty, corrosion resistant, conveyor, specialty chain and many more.
|
|
|
|
|
|
|
|
|
Description
|

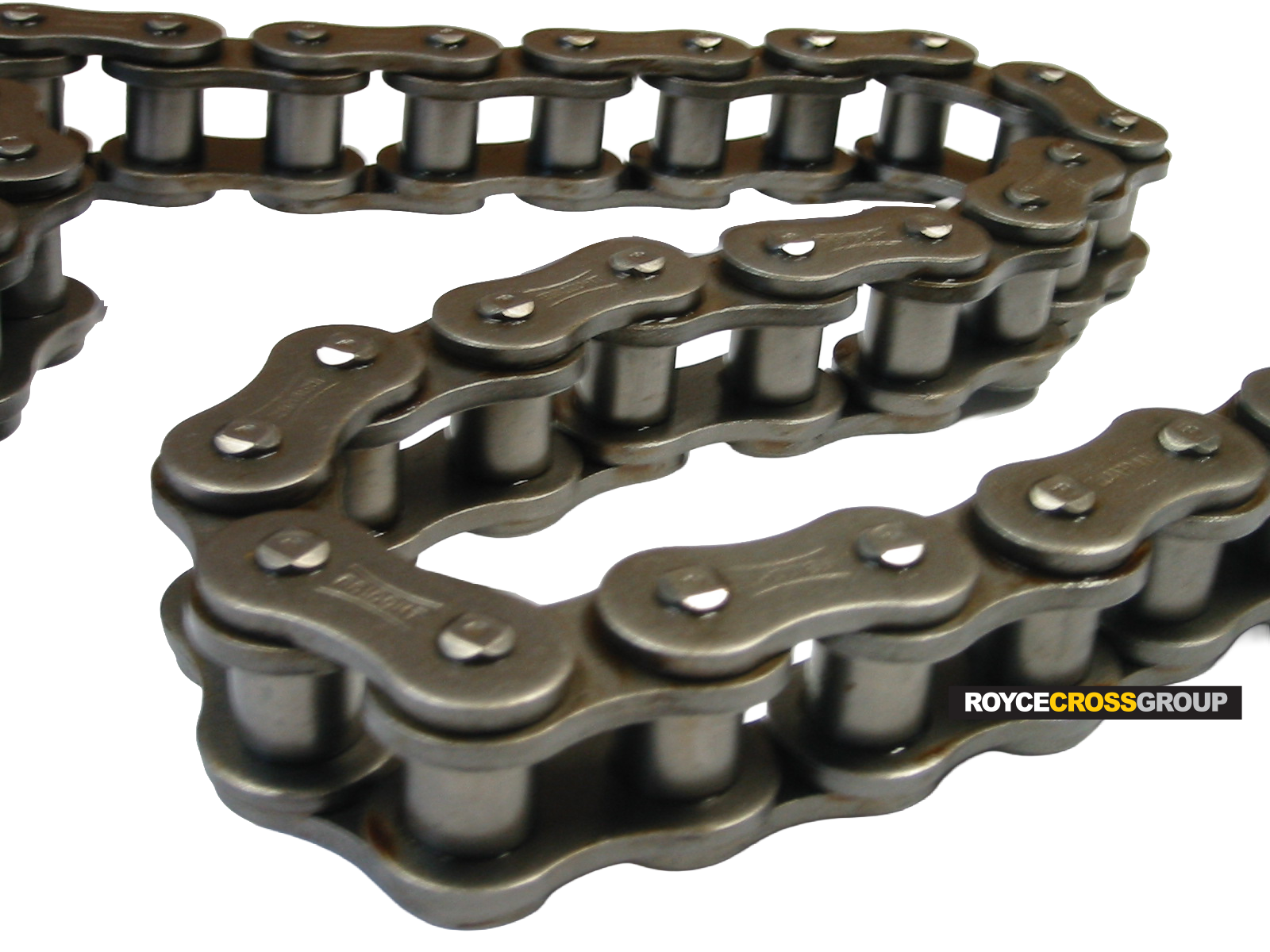

Standard roller chain |
Heavy-duty roller chain |
Agrituff chain |
Lambda Neptune |
Leaf chain |
Attachment chain |
|
Size range
|
RS18 to RS80 |
Various up to 240 |
RS40 to RS80 |
Up to 140 - depending on type |
AL422-AL1666 and BL423-BL1646 |
Varies - from 40 to 400 |
|
Types
|
Single and double strand types |
Super, RS-HT, Super H, Ultra Super |
40, 50, 60, 60H and 80 single strand; 50 and 60 double strands |
Surface treated, heavy duty, curved |
Al for light loads and BL for heavy loads |
Attachment and special sprocket allow chain to wrap around drum |
|
Applications
|
Industrial and agricultural |
Harsh environments, construction, agricultural, port, vertical parking structures and more |
Agriculture - quad-riveted pins have extra heat treatment |
Various industries |
Suitable for hanging, balancing and motion transmission applications |
Suitable for linear and large-radius rotational motion applications |
