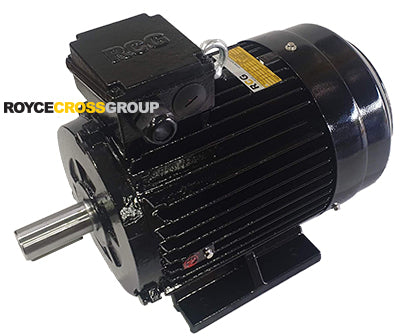

Three-phase motors
Royce Cross Group's vast range of three-phase electric motors are robust and up to the task of heavy duty in Australia's harsh environment. Industrial, mining, hazardous area, general purpose and brake motors are among the many three-phase motor models carried by Royce Cross Group.
All motors are high-performance tested and can be modified or customised for individual customers - contact the RCG team to find out more.
Supply: Standard voltage is 380 to 415 volts, three-phase 50Hz. Other voltages can be supplied on request. Motors that are 3kW and under are supplied star connected 415 volts while 4kW and above motors come with Delta connect 415 volts/Star 690 volts.
Mounting options: Horizontal foot mounting; flange; and foot/flange mounting are available.
Drawings: Available on request.
Cast iron options
Robust and ready for heavy duty, Royce Cross Group's range of cast-iron electric motors boast protection and ability for modification and customisation. Better still, the Royce Cross Group team can customise and modify each motor to suit a customer's individual needs.
|
|
|
|
|
|
|
Range
|
Premium severe duty |
Hazardous area motors |
RCG industrial motors |
RCG mining motor |
|
Speed
|
2 to 8 pole |
0.18kW to 560kW; 2 to 8 pole |
2 to 8 pole; other speeds are available |
2 to 8 pole |
|
Mounting
|
Foot; foot/flange |
Foot; foot/flange |
Foot and foot/flange; multiple mounting arrangements available |
Foot; foot/flange; multiple mounting available |
|
Protections
|
IP66 protection, class F insulation with class B temperature rise and class H available |
Class F and class H insulation available; available in Ex de, Exd, Exe, Extd (DIP), ExnA |
IP55, IP56, IP66, class F insulation with class B temperature rise |
IP66 |
|
Details
|
Terminal on right-hand side from drive-end shaft |
IECEx certified terminal box on the right side looking at the drive-end shaft |
Terminal box on top is standard |
Terminal box on top as standard; two-part epoxy paint; alloy or cast fan on request |
