Vendor: Teco

SKU: E510-201-H1FN4S

$640.00
$640.00

Available in stock (1)

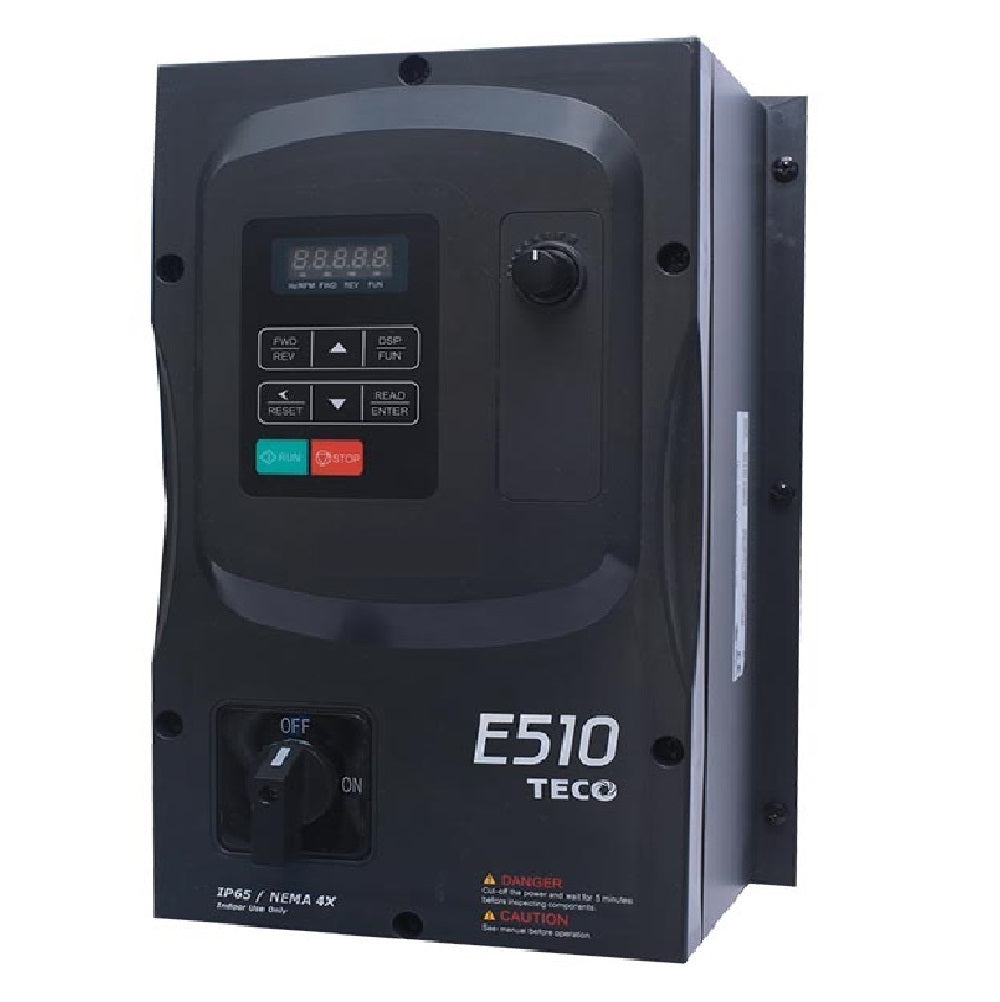

Teco E510 IP66 0.75kW compact vector control drive

With a tough enclosure, the Teco E510 IP66 vector control drive is suitable for use in such applications as food processing, textiles, petrochemical industry, livestock industry and woodworking manufacturing.

FEATURES

  • V/F and vector control
  • Starting torque 150%
  • Fire override mode
  • Safety stop
  • IP66 enclosure
  • Built-in Modbus RTU via R145 port
  • PLC and PID functions as standard
  • Parameter lock function prevents unauthorised access
  • LED keypad
  • Power switch
  • EMI filter
  • Digital display and keypad including potentiometer, PLC & PID function standard
  • 0.4kW to 2.2kW single phase in, 0.75kW to 11kW three phase in
  • RFI filter


TECHNICAL DATA

Volts: 200 to 240 volts

Wattage: 0.75kW

Horsepower: 1

Frame: 1 (W: 150.8mm, H 248.7mm, D 183mm)

Weight: 2.9kg

Amps: 4.5

Starting torque: 150%/3Hz (V/F)' 150%/1Hz (vector)



Teco E510 IP66 0.75kW 200-240V 1ph 4.5A, RFI Filter, Frame 1, S/Torque 150%/3Hz(V/F), 150%/1Hz(Vector), + Power Switch, + EMI filter, Ext. h/sink, + dig display & k/pad Inc. potentiometer, PLC & PID Function Std, Lock Function: No Unauth Acc

Teco E510 IP66 0.75kW 200-240V 1ph 4.5A, RFI Filter, Frame 1, S/Torque 150%/3Hz(V/F), 150%/1Hz(Vector), + Power Switch, + EMI filter, Ext. h/sink, + dig display & k/pad Inc. potentiometer, PLC & PID Function Std, Lock Function: No Unauth Acc
