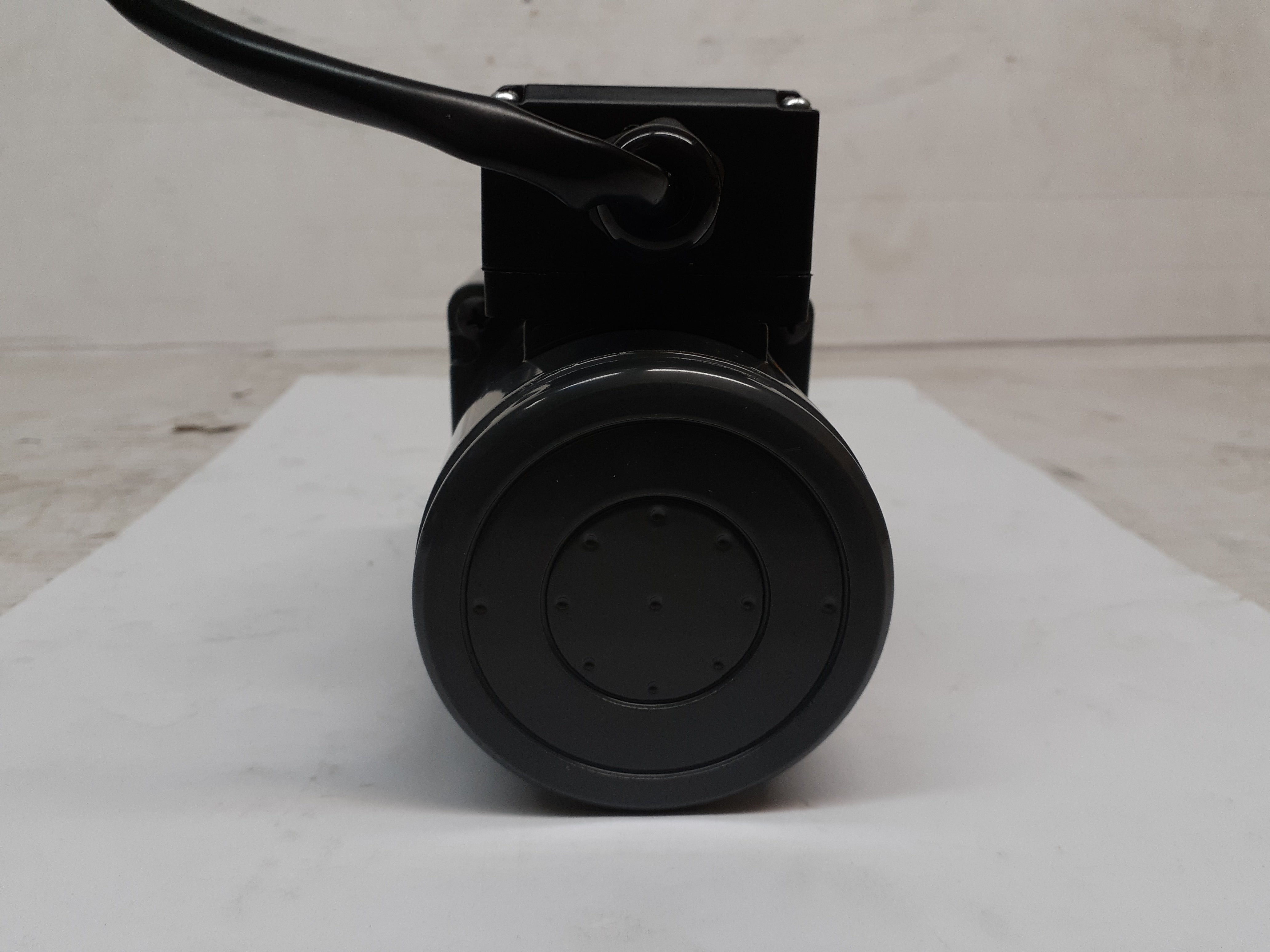

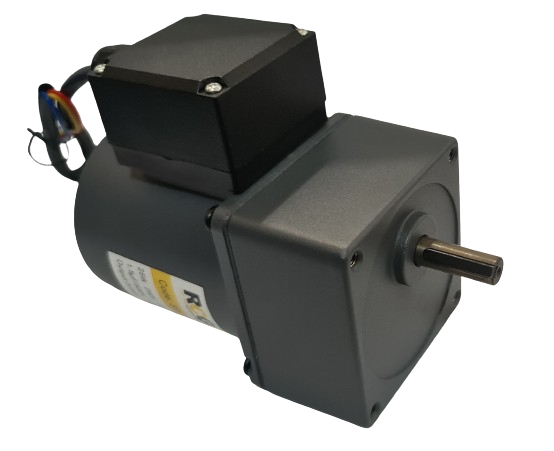

Spit motor 25W 3RPM output 1ph 240V 50Hz 80mm with terminal box
Designed to achieve an incredibly low speed for spit roasting, the Royce Cross Group spit motor (4IK25GN-CT/4GN500K) has a 500 to 1 gearbox. It is compact and light with high torque for direct-drive gear motor.
FEATURES
- Includes terminal box
- Long life
- Hard working
- Incredibly low speed

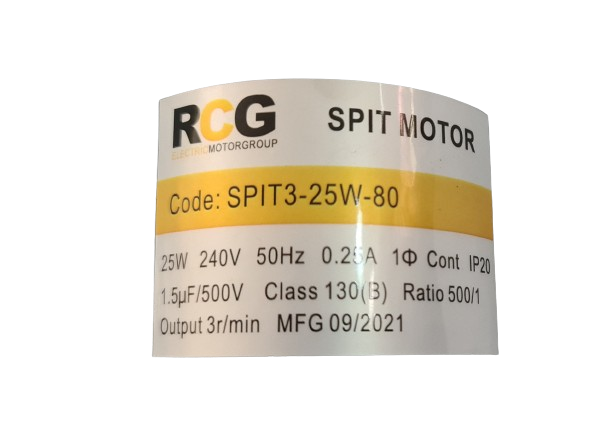

SPECIFICATIONS
Volts: 240
Type: Single phase
Capacity: 80kg
Gearbox: 500:1
Shaft: 10mm with 4mm key
Wattage: 25
Volts: 240
Rated speed: 3rpm
Duty: Continuous
Frequency: 50Hz
Rated torque: 7.8Nm
Rated current: 0.25 amps
Units: Each
