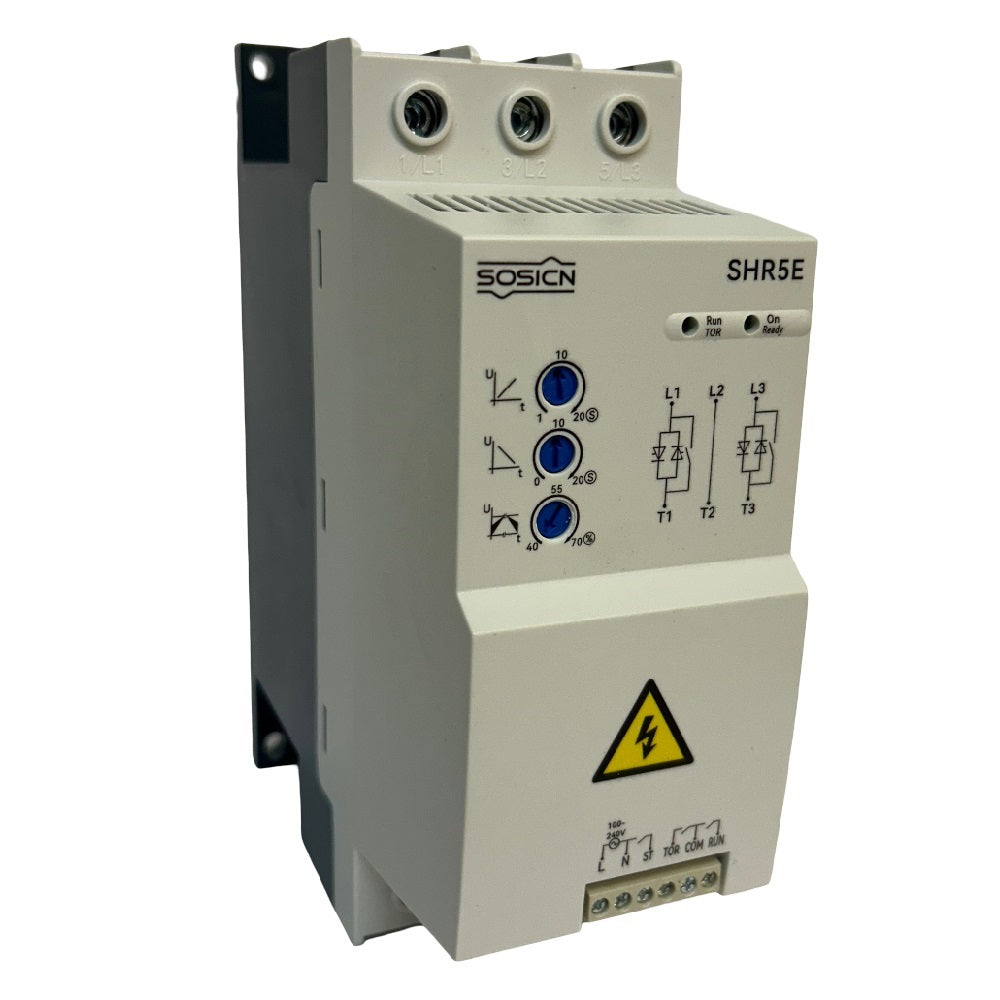

30kW, 60-amp din rail digital soft starter - IP20

Delivering advanced motor control, Royce Cross Group's SHRE5E series soft starter has a built-in bypass and flame-retardant design for energy efficiency and safety.

The soft starter boasts loads of protection - short circuit, overload, phase loss, over and under voltage - providing peace of mind.

It has a small, compact and sturdy structure, facilitating integration into the control system.

Its DlN rail groove base enables easy installation and fixation. With simple and intuitive operation, its parameters are adjusted by a centralised knob.
The power supply, operating status and fault analysis are clear at a glance with LED indicators.
The soft -start and soft -stop times are adjustable, and there are multiple options for the initial soft - start voltage.
lt is equipped with a built-in bypass contactor, which reduces losses and extends the service life of the equipment.

FEATURES

• Multi-functional integration
• Flexible start models
• Stable control
• User-friendly operation
• Energy efficiency
• Short circuit protection
• Overload protection
• Phase loss protection
• Over and under voltage protection

SPECIFICATIONS

Type: Digital soft starter

Mounting: Din rail

Power rating: 30kW

Frequency rating: 50/60Hz

Control voltage: 100-240VAC

Input: 3-phase AC 400 volts

Output: 3-phase AC

Protection rating: IP20

Units: Each
