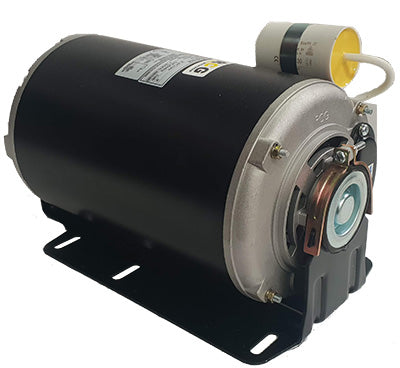

RCT90 750w 1400rpm 2/3spd 4p B56 single shaft resilient mount cradle

The RCT90 is one of the horizontal resilient-mount evaporative cooler electric motors made specifically for Royce Cross Group to suit Australian conditions.

FEATURES

• Motor can be connected as two or three speeds
• Class F Insulation
• Belt-driven evaporative motor
• Resilient mount cradle
• Capacitor supplied
• 5/8" diameter shaft
• 12-month warranty
• B56 frame
• Auto reset thermal overload
• Interchangeable with other brands
• CE certified
• 12-month warranty

TECHNICAL DATA

Watts out: 750

Amps: 4.54

Rpm: 1410/1100/900

Speed: 2 or 3 speed

Capacitor size: 30uF

Capacitor supplied: Yes

Rotation direction: Anti-Clockwise

Reversible: Yes

Volts: 240

Shaft diameter: 5/8"

EQUIVALENT

Fasco: 809455QVB-B13S - windings: 4p, tapped 2 or 3 speed

Seeley: 095066, 818580, 5075Q4A001
