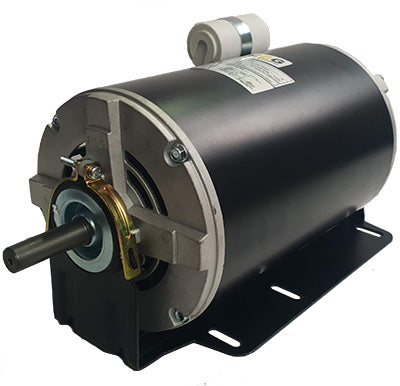

RCT90 600w 1400rpm 2/3speed single-shaft resilient mount cradle

The RCT90 is one of the horizontal resilient-mount evaporative cooler electric motors made specifically for Royce Cross Group to suit Australian conditions.

FEATURES

• Motor can be connected as two or three speeds
• Belt-driven evaporative motor
• Resilient mount cradle
• Auto reset thermal overload
• Single phase
• B56 frame
• Interchangeable with other brands
• CE certified
• Capacitor supplied
• 5/8" diameter shaft
• 12-month warranty

TECHNICAL DATA

Watts out: 600

Amps: 3.92

Poles: 4

Phase: Single

Rpm: 1400/1120/900

Speed: Two or three speed

Frame: B56

Capacitor size uF/V: 20

Capacitor supplied: Yes

Rotation direction: Anti-clockwise

Reversible: Yes

Volts: 240

EQUIVALENT

Fasco: 809455PVB-B13S - tapped 2 or 3 speed

Seeley: 095042, 818764, 5055Q4A001
