RCT90 500/600W three-speed B56 frame 1/2" shaft lug mounting

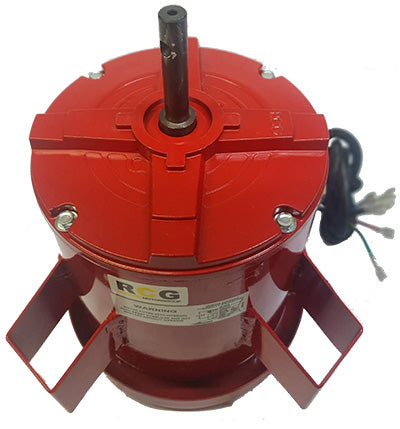

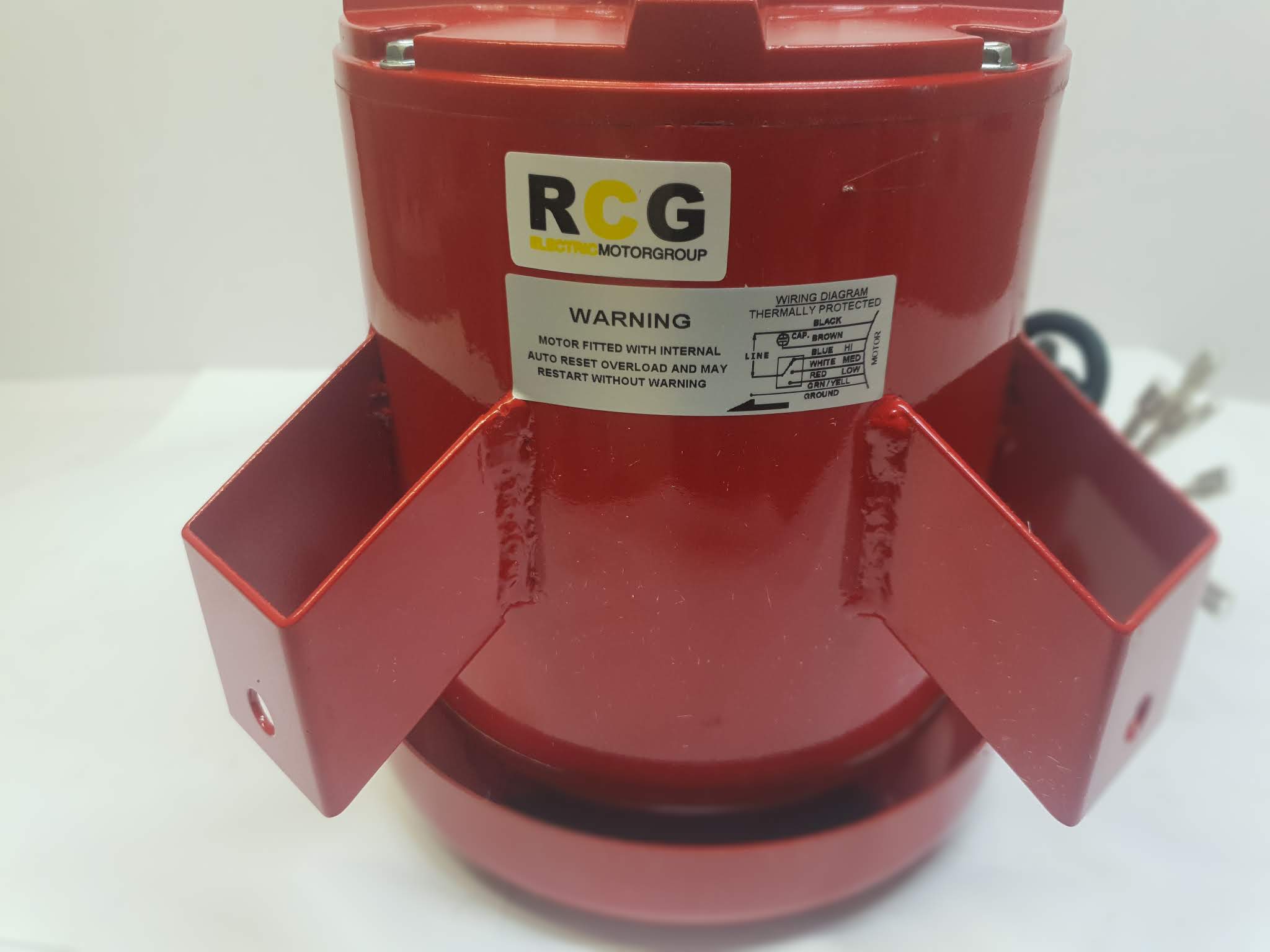

Referred to as a rocket ship due to its physical appearance this motor has 4 brackets fixed to the body for mounting.This RCT 90 series vertical mount evaporative cooling motors is made specifically for Royce Cross Group for Australian conditions.

FEATURES

• Evaporative cooling motor
• Four brackets fixed to body for mounting
• Lug mounting
• Direct drive/fan on shaft application
• Auto reset thermal overload
• Interchangeable with other brands
• Three speed
• CE certified
• Capacitors supplied
• B56 Frame with 1/2" shaft
• 12-month warranty

TECHNICAL DATA

Watts out: 600

Amps: 5.4

Rpm: 1350/1120/750

Speed: Three

Capacitor size: 15uF (& 10uF)

Capacitor supplied: Yes

Rotation direction: Clockwise

Reversible: No

Volts: 240

Shaft diameter: 1/2"

Watts out: 500

Amps: 5.2

Rpm: 1350/1070/690

Speed: Variable

Capacitor size: 10uF (& 15uF)

Capacitor supplied: Yes

Rotation direction: Clockwise

Reversible: No

Volts: 240

Shaft diameter: 1/2"

EQUIVALENT

Fasco: 809454PVB-A16 - windings: 4p, variable speed

ADAPTION

10uF capacitor = 500W

15uF capacitor = 600W
