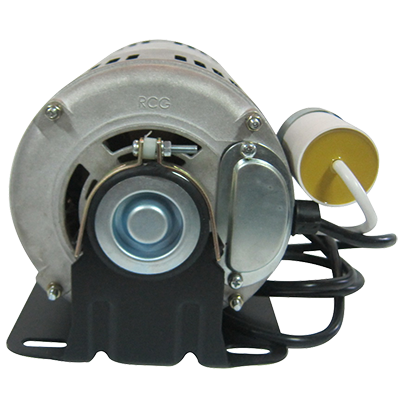

RCT90 1120W 1400/850rpm 2spd single shaft resilient mount cradle 4p 1ph 240V

The RCT 90 series of belt-driven horizontal resilient mount evaporative cooling motors are made specifically for Royce Cross Group to suit Australian conditions.

FEATURES

• Resilient mount cradle
• Auto reset thermal overload
• Interchangeable with other brands
• Two speed
• CE certified
• Capacitor supplied
• 5/8" diameter single shaft
• 12-month warranty

TECHNICAL DATA

Watts out: 1120/305

Amps: 6.0

Rpm: 1400/850

Speed: Two

Capacitor size: 30uF

Capacitor supplied: Yes

Rotation direction: Anti-clockwise

Reversible: Yes

Volts: 240

Shaft diameter: 5/8"

EQUIVALENT

Fasco: 809455SVB-B14; windings: 4p, tapped, two-speed
