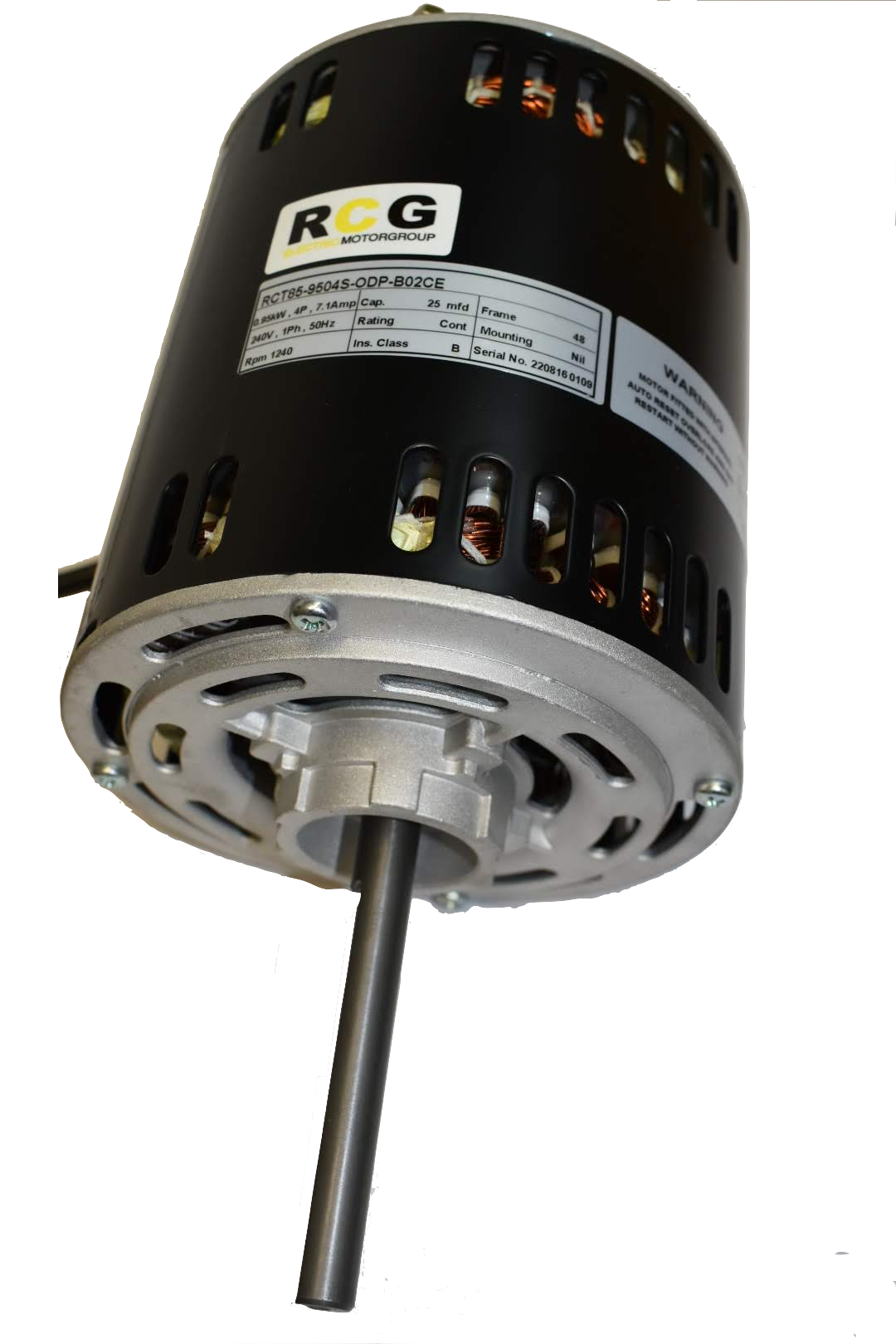

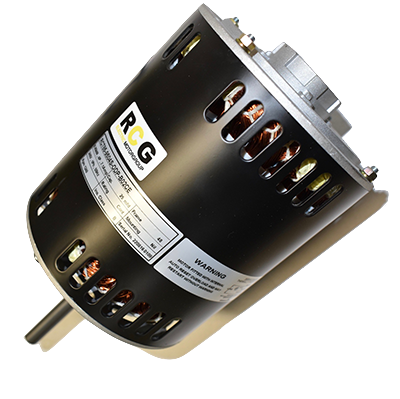

RCG 85 950w B48 variable speed band mount shaft up

The RCG 85 series of motors have been specifically designed for Australian conditions. This motor is used in evaporative cooling applications mounted shaft down.

FEATURES

• Low noise and long-life bearings
• Clockwise at drive-end shaft
• Band mount shaft up
• Single phase
• Four pole
• Auto-reset thermal overload on motors
• Interchangeable with other brands
• Permanent split-capacitor design
• CE certified
• Reversible by relocating rotor

SPECIFICATIONS

Watts out: 950

Amps: 7.1

Rpm: 1270

Speed: Variable

Frame: B48

Capacitor size: 8UF/440V

Rotation direction: Clockwise

Volts: 240

EQUIVALENT

Fasco part: 80855BRVA-A13 or A16
