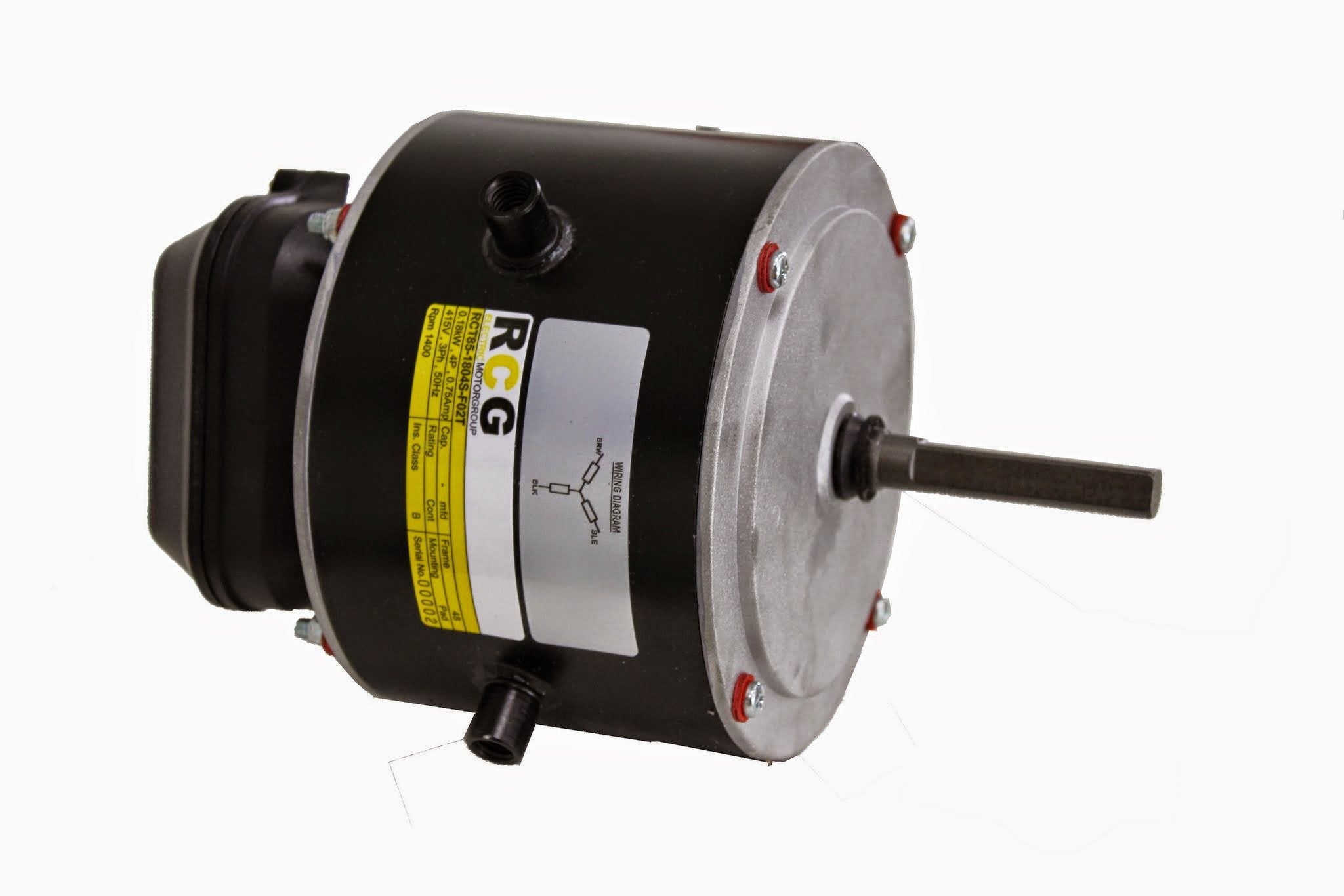

RCG 85 750w 4p 1spd 1ph TE stud mount QR3146 + plug and lead

The RCT85 series single-shaft reversible fan motor is designed for a variety of outdoor applications, including condensing units and ventilation systems. The RCG 85 range is specifically made for Royce Cross Group to suit Australian conditions.

FEATURES

• Terminal box
• 10-amp 2m plug and lead
• Stud mount
• One speed
• Continuous duty
• Totally enclosed
• Low noise bearings
• Air over motor
• IP54 protection
• CE certified
• 12-month warranty

SPECIFICATIONS

Watts out: 750

Amps: 5.10

Rpm: 1370

Speed: Single
Cap size: 20uF/440 volts

Rotate direction: Anti-Clockwise

Reverse: Yes

Volts: 240
Shaft diameter: 1/2"

EQUIVALENT FOR:

RCG designed motor
