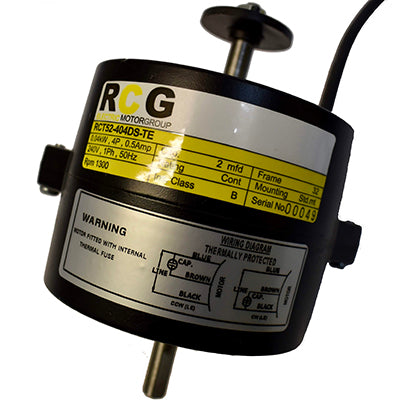

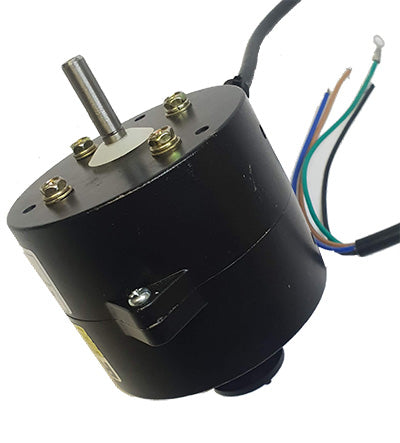

RCG52 1/20hp 1ph 4p 1300rpm 40W double shaft 440V Fridgemaster

The RCG Fridgemaster electric motor is designed for flexibility of application. The RCT52 series is utilised mostly in refrigeration and for small fan uses. it also boasts a more efficient PSC design over shaded pole motors.

FEATURES

• Thermal fuse
• Standard shaft and hub drive
• Universal mounting arrangement
• Bi-directional
• 2ufd capacitor and mounting screws supplied
• Distinctive snap and fit four-in-one design
• ⁵/₁₆″ shaft
• 12-month warranty

SPECIFICATIONS

Watts out: 40

Amps: 0.50

RPM: 1300

Cap size uf/V: 2/440

Capacitor and reversible: yes

Volts: 240

Fan diameter: 275

Fan pitch: 40 degrees

PLEASE NOTE: Fan selections in the RCT52 series are based on five blade propellor-style fans and are a guide only; Check fan curves before selecting alternate style fans.

ALTERNATIVE FOR

Fasco/Betts part: 30D503-80A/50D503-80A

Kulthorn part: KL30D/KJF2F4700

Brinsmead part: BLD40-11A
