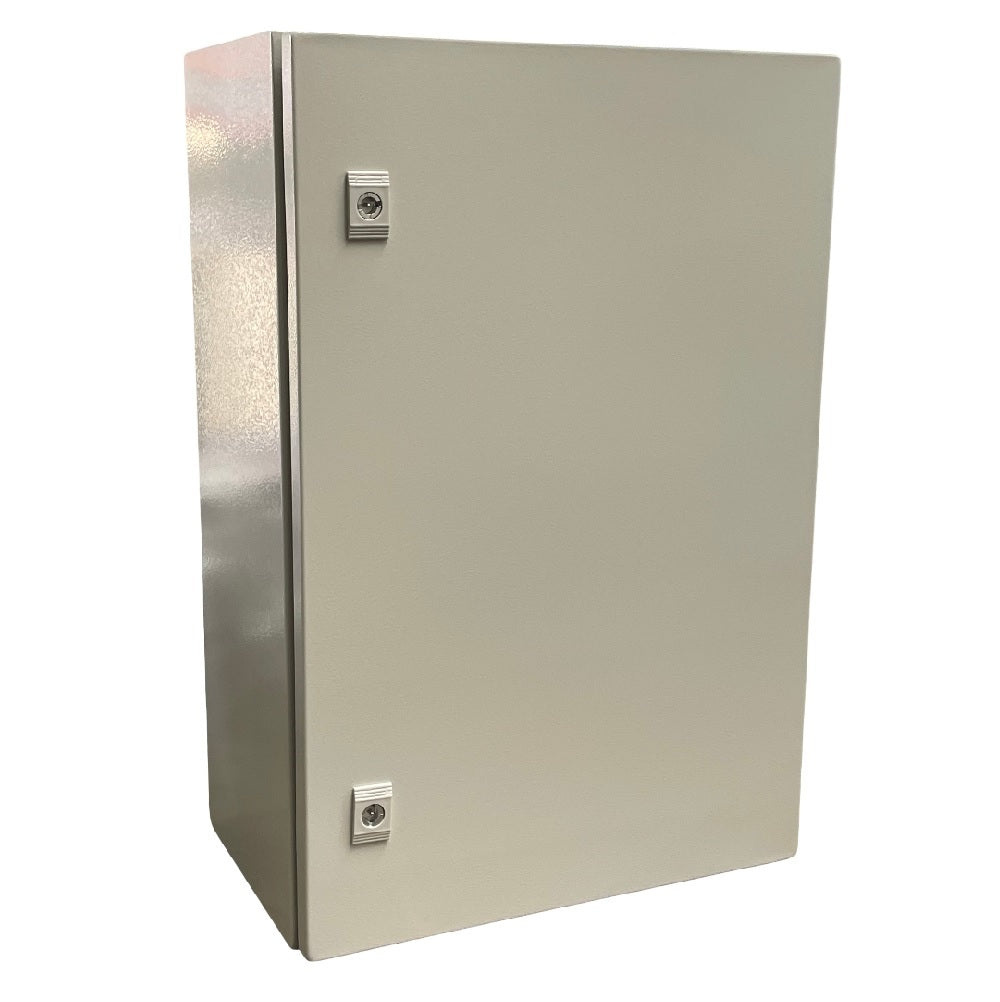

RCG metal enclosure 700x500x300mm - wall mounting

Made from a continuous length of sheet steel that is double folded at the front, the RCG wall-mount metal enclosures exude quality.

The back of each enclosure has been welded to the frame.

Each unit is dust-proof and waterproof to IP65 standard.

The enclosures are externally and internally protected with polyester epoxy resin grey paint to RAL-7032 texturised.

FEATURES

• Rear welded studs for direct fixing to mounting plates or other accessories.
• Concealed, easily removable hinges, allowing door to open more than 120 degrees
• Foamed-in polyurethane gasket and front rain gutter for maximum protection
• Mounting and gland plate

SPECIFICATIONS

Size: 700mm x 500mm x 300mm

Mounting: Wall

Type: Metal enclosure

Units: Each
