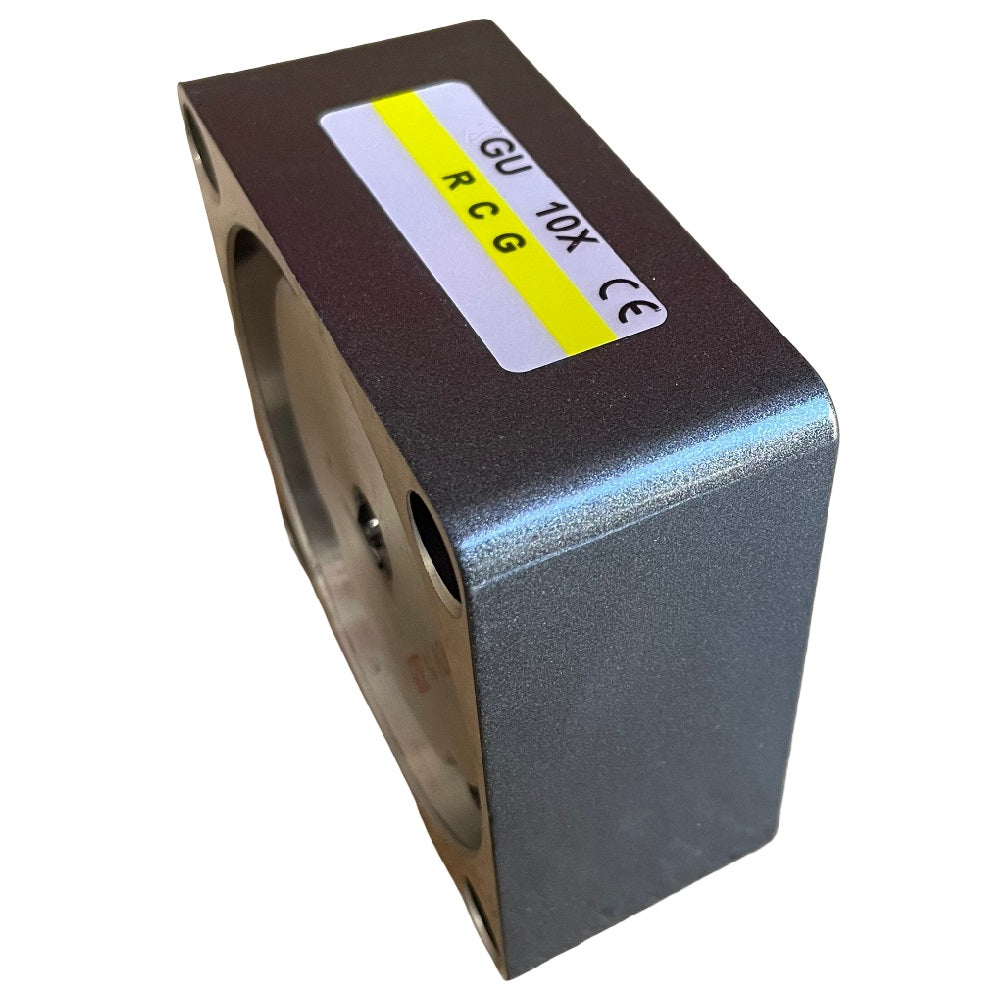

RCG intermediate gearbox - 10:1 ratio
Royce Cross Group's signature gearbox provides customisation, allowing customers to pair gearboxes and motors to suit individual rpm needs.
The 10:1 ratio intermediate gearbox connects in the middle of the motor and another gearbox offering a further 10:1 reduction in speed
This gearbox can be paired with a single-phase motor or a three-phase motor as well as having the option to connect with a variable-speed motor and a controller for variable speed.
All motors and connecting gear heads are sold separately.
There also is the option to add a mounting bracket (CGM-RCG-5MOUNTBRACKET), which is sold separately.
Th result is an individualised compact geared motor kit built to suit your individual application.
These kits are suited to many applications, including automation, conveyor systems, vending machines and other uses where motion control and power transmission are required.
For assistance with customising a compact geared motor kit, contact the RCG team at sales@roycecrossgroup.com
SPECIFICATIONS
Type: Intermediate gearbox
Dimension: 5:90mm
Gear type: intermediate gearbox
Ratio: 10:1 - middle gear
Connects to: 90mm series motors to a gear head
Mount: 4mm x 6mm
PCD: 104mm
Units: Each gearbox
