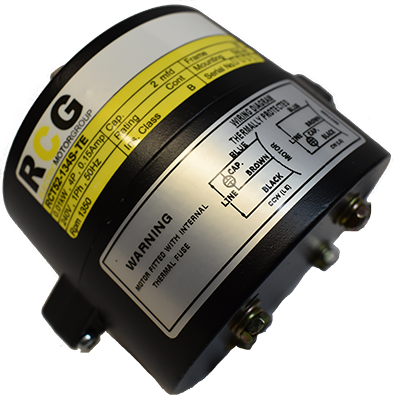

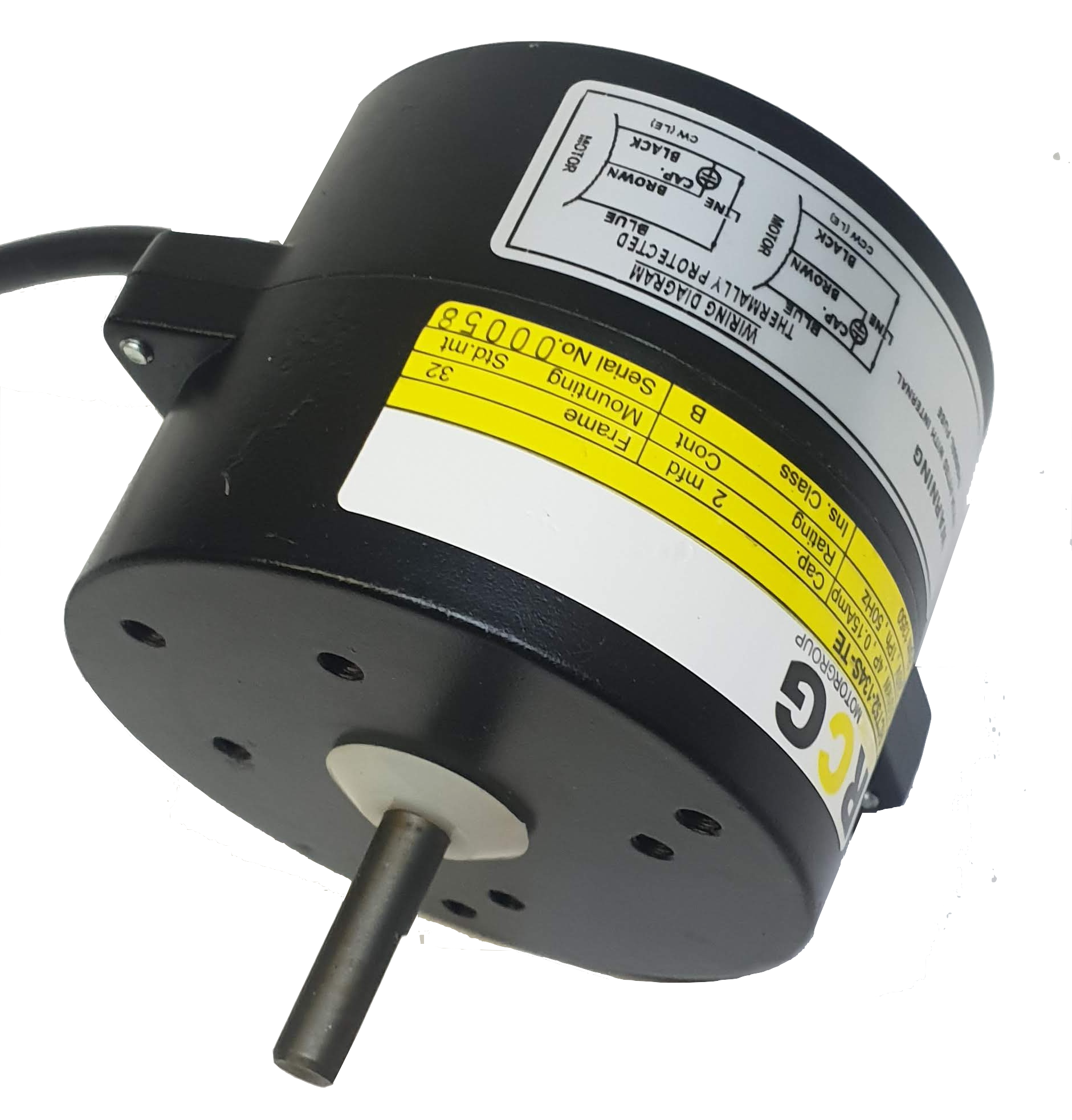

RCG 52 1/50Hp single phase four pole 1350rpm 13W single-shaft 440v Fridgemaster

Designed for flexibility of application, the RCT52 electric motor series is utilised mostly in refrigeration and for small fan uses. The RCT52 also boasts a more efficient PSC design over shaded pole motors.

FEATURES

• Thermal fuse
• Standard shaft and hub drive
• Universal mounting arrangement
• Bi-directional
• Capacitor and mounting screws supplied
• Distinctive snap and fit four-in-one design
• 5/16" shaft
• 12-month warranty

SPECIFICATIONS

Watts out: 13

Amps: 0.15

RPM: 1350

Cap size uf/V: 2/440

Capacitor and reversible: yes

Volts: 240

Fan diameter: 229

Fan pitch: 40 degrees

PLEASE NOTE: Fan selections in the RCT52 series are based on five blade propellor-style fans and are a guide only; Check fan curves before selecting alternate style fans.

SUGGESTED ALTERNATIVE FOR

Fasco/Betts part: 30D501-80A/50D501-80A

Kulthorn part: KL10D/KJB2M4701

Brinsmead part: BLD13-11A
