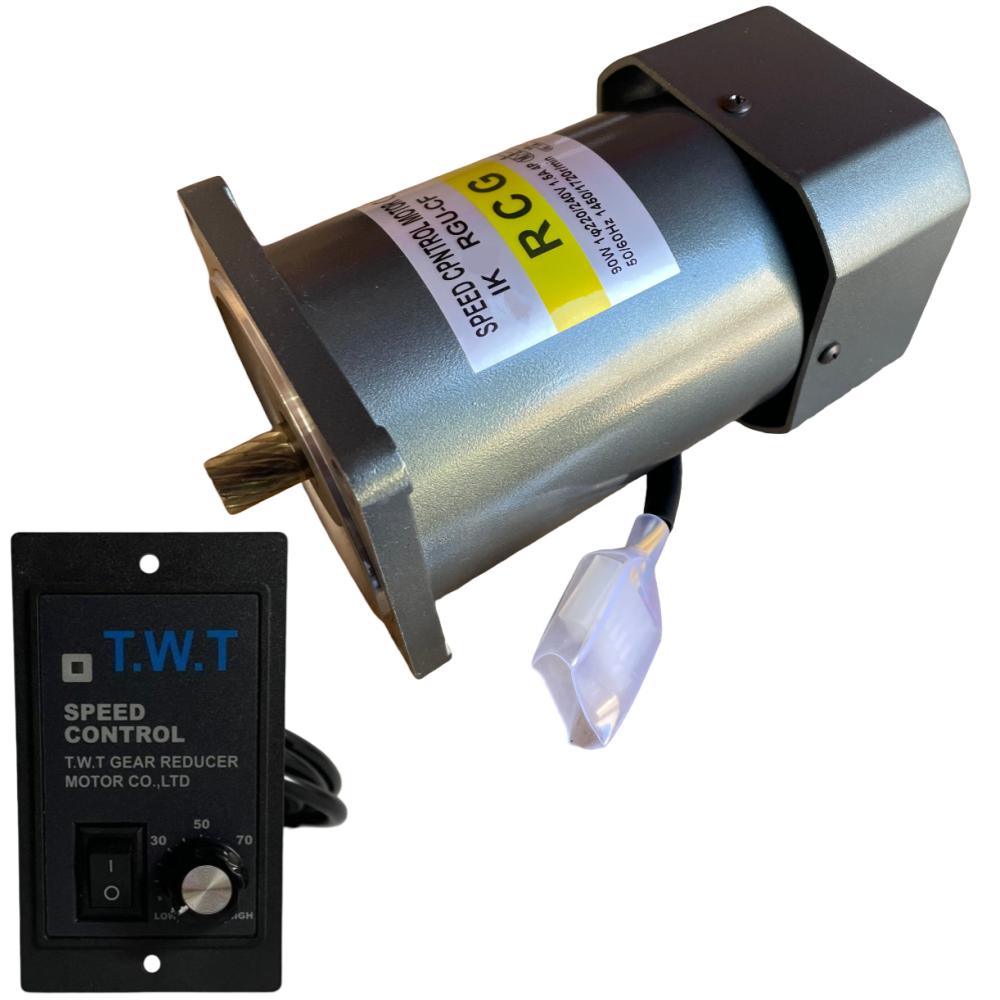

25-watt RCG compact variable-speed motor kit - 220-240-volt, single phase, four pole

Royce Cross Group's signature compact motors have been specifically engineered to provide high torque with low noise. They provide reliability and efficiency for continuous operation applications.

The compact motors can be paired with gear heads and brackets, which are sold separately.

This model comes with an RCG analogue speed controller and a 2m lead.

MOTOR SPECIFICATIONS

Type: Compact gear motor

Phase: 1 phase

Voltage: 220 to 240 volts

Output: 25 watts

Rated current: 0.24 amps

Appropriate reducer: CGM-RCG-4GNXXK (XX = Ratio)

Maximum allowable load: 1.5 uF

Requires gear head: Yes (sold separately)

Requires controller: Included

Bracket: CGM-RCG-4MOUNTBRACKET (sold separately)

Comes with: Extension lead with connector for controller

Units: Each compact motor

CONTROLLER FEATURES

• Stall protection function
• Panel operated or external switch functions
• Panel operated speed control potentiometer & on/off switch

CONTROLLER SPECIFICATIONS

Type: Analogue controller

Phase: 1 phase

Voltage: 240 volts

Output: 25 watts

Appropriate motor: Included

Appropriate gear head: CGM-RCG-4GNXXK (XX = Ratio)

Comes with: Lead with motor connector

Units: Each compact motor
