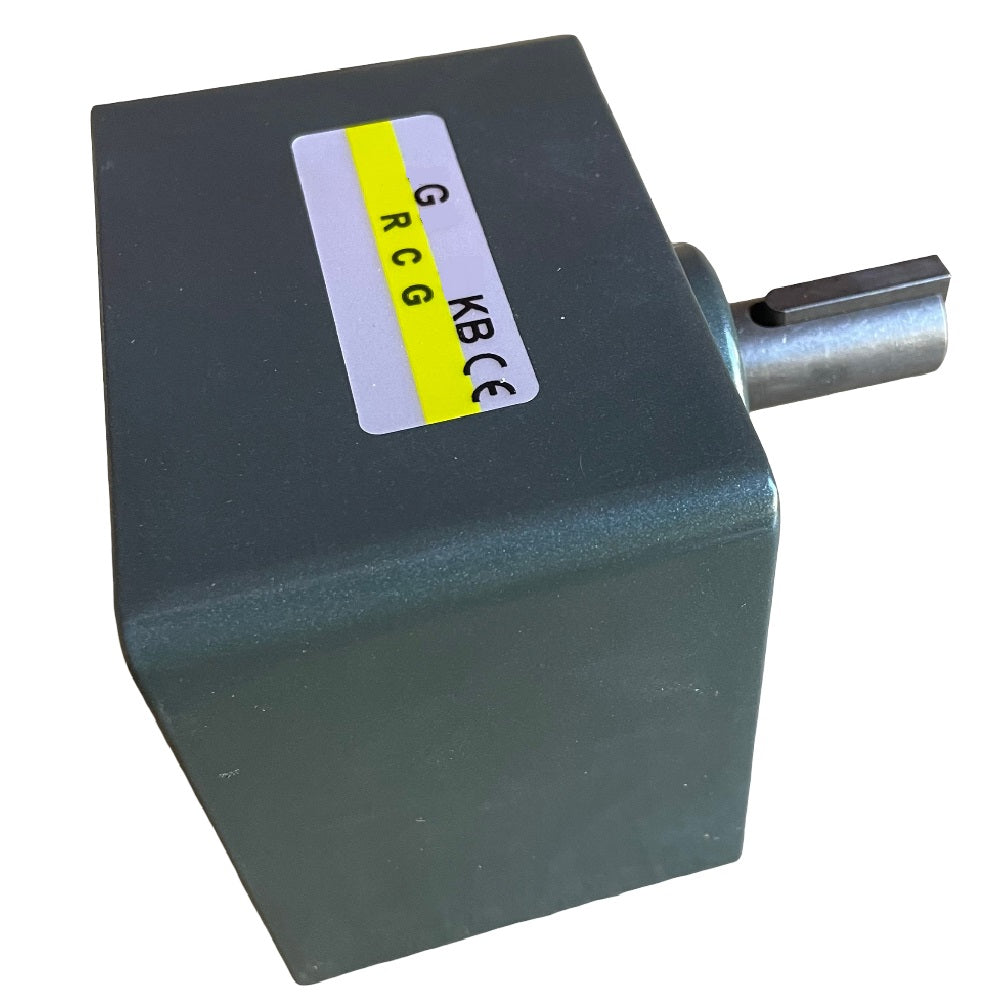

RCG compact gear head - 18:1 ratio, 80rpm output speed, 10mm shaft, 4mm key

Royce Cross Group's signature gear heads can be matched with RCG's compact gear motors, which have been specifically engineered to provide high torque with low noise. They provide reliability and efficiency for continuous operation applications.

The compact motors and mounting brackets are sold separately.

SPECIFICATIONS

Type: Compact gear head

Ratio: 18:1

Output speed: 80rpm

Shaft: 10mm

Key: 4mm

Mount: Four flanged bolt holes x 6mm

Pitch circle diameter: 94mm

Offset:  15mm

Compatible compact motors: 80mm series (sold separately)

• CGM-RCG-4IK25GN-CT (240V 1 phase)
• CGM-RCG-4IK25GN-WT (440V 3 phase)
• CGM-RCG-4IK25RGN-C with CGM-RCG-4IK25RGN-C-CONTROLLER (variable speed 240V 1 phase)

Bracket: CGM-RCG-4MOUNTBRACKET (sold separately)

Units: Each gear head
