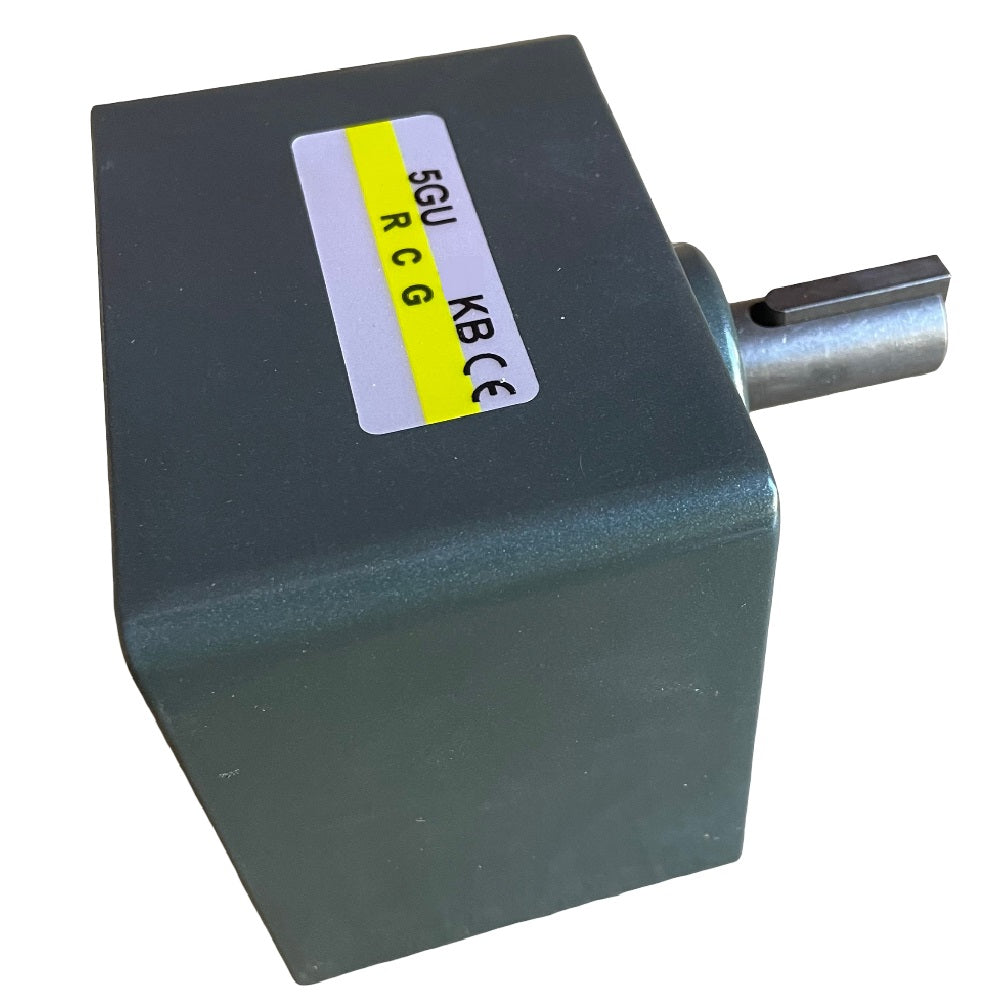

RCG compact gear head - 100:1 ratio, 14rpm output speed, 15mm shaft, 5mm key

Royce Cross Group's signature gear heads can be matched with RCG's compact gear motors, which have been specifically engineered to provide high torque with low noise. They provide reliability and efficiency for continuous operation applications.

The compact motors and mounting brackets are sold separately.

SPECIFICATIONS

Type: Compact gear head

Ratio: 100:1

Output speed: 14rpm

Shaft: 15mm

Key: 5mm

Mount: 4 flanged bolt holes x 6mm

Pitch circle diameter: 104mm

Offset:  18mm

Compatible compact motors: 90mm series (sold separately)

• CGM-RCG-5IK60GU-CFT (60 watt) or CGM-RCG-5IK90GU-CFT (90 watt) (240V 1 phase)
• CGM-RCG-5IK60GU-WFT (60 watt) or CGM-RCG-5IK90GU-WFT (90 watt) (440V 3 phase)
• CGM-RCG-5IK60RGU-CF with CGM-RCG-5IK60RGU-CF-CONTROLLER (variable speed 240V 1 phase 60 watt)
• CGM-RCG-5IK90RGU-CF with CGM-RCG-5IK90RGU-CF-CONTROLLER (variable speed 240V 1 phase 90 watt)

Bracket: CGM-RCG-4MOUNTBRACKET (sold seperately)

Units: Each gear head
