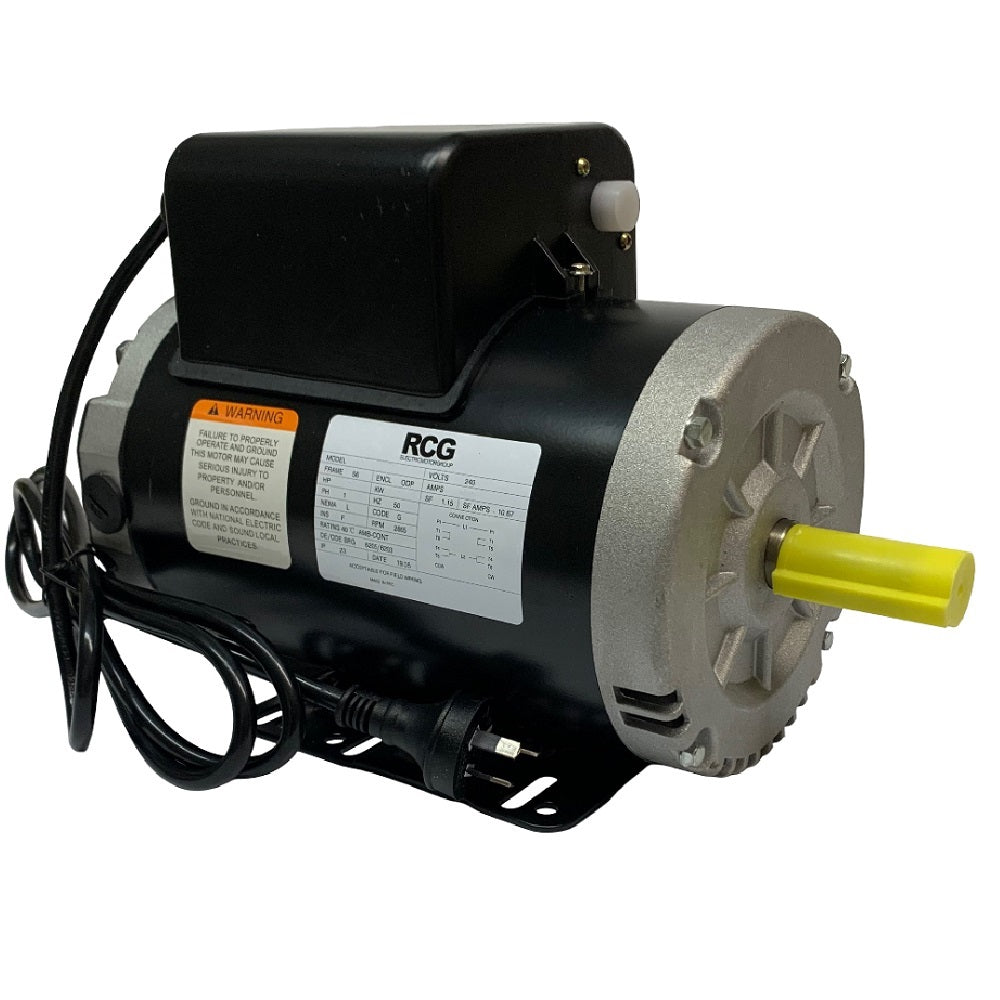

RCG 2hp, 1.65kW compressor duty motor - B56 foot mount, 240V, 3/4 shaft

Manufactured to meet Australian standards, the RCG 1.65kW compressor-duty electric motor is suitable for high-torque industrial loads. Able to handle the demands of frequent stop/start cycles, this motor has an open drip-proof enclosure and a two-pole design in a B3 foot mount variation. It comes with a 1m power lead.

SPECIFICATIONS

Type: Compressor duty electric motor

Power: 2hp, 1.65kW

Poles: 2

Voltage: 240 volts

Mounting: B56 foot

Enclosure: Open drip-proof

Capacitors: Start cap 200-240uf, run cap 40uf

Shaft: 3/4 ACW

Speed: 2800rpm

Application: Suitable for high-torque industrial compressor loads

Units: Each
