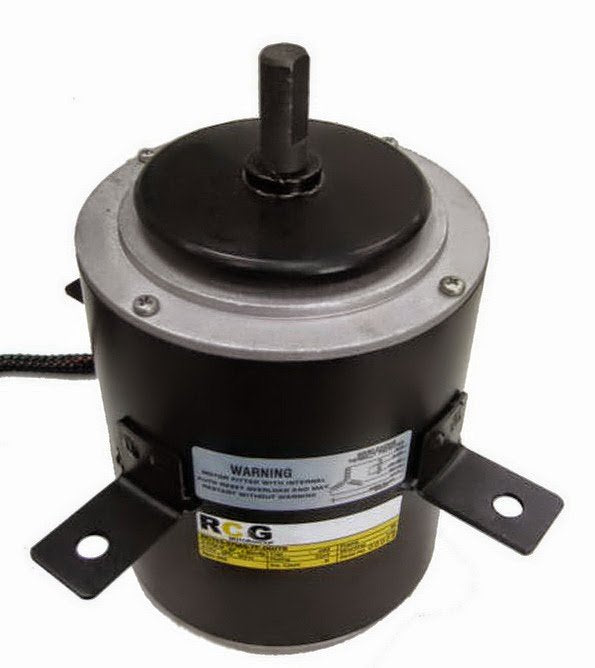

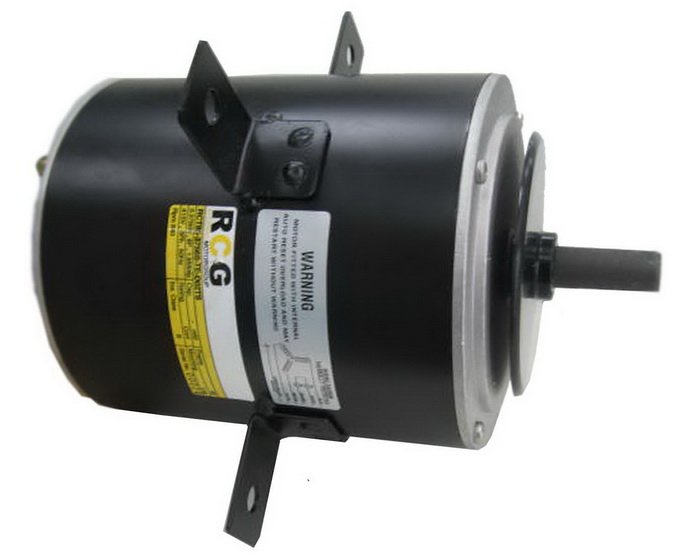

RCG 85 lug mount fan motor 375W 940rpm 6p 1spd single shaft
The lug mount fan motor is part of the RCG 85 series of air movement motors made specifically for Royce Cross Group for Australian conditions.
FEATURES
- 5/8" shaft
- Lug mount 4 x 202.9mm PCD
- Low noise and long-life bearings
- Auto reset thermal overload
- Three-phase
- Interchangeable with other brands
- Permanent split-capacitor design for singple phase
- CE certified
- Totally enclosed
- C3 bearings
- Includes shaft slinger 100mm
- 12-month warranty
SPECIFICATIONS
Watts out: 375
Amps: 1.65
Rpm: 940
Speed: One
Capacitor size: n/a
Rotation: Clockwise
Reversible: Yes
Volts: 415
Shaft diameter: 1/2"
EQUIVALENT
Fasco part: 809436NTB-B11
