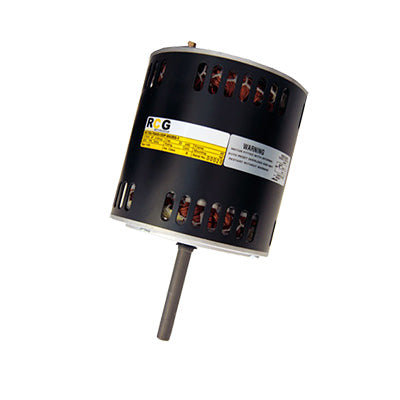

RCG 85 lug mount 315W 4p extended NDE shaft/rear end shield tacho groove

The RCG 85 series electric motor has an extended non-drive end shaft and tacho groove in its rear end shield for accurate speed control. Commonly used in variable speed evaporative cooling application. The RCG 85 range is specifically made for Royce Cross Group to suit Australian conditions.

FEATURES

• Variable speed
• Extended non-drive-end shaft
• Tacho groove in rear end shield
• Single phase
• Four pole
• Lug mount
• Variable speed
• Interchangeable with other brands
• CE certified
• 12-month warranty

SPECIFICATIONS

Watts: 315

Amps: 2.4

Rpm: 1400

Speed: Variable

Capacitor size: 8uf/440 volts

Capacitor supplied: No

Rotate direction: Anti-clockwise

Reversible: Yes

Volts: 240

Shaft diameter: 1/2'

EQUIVALENT

Fasco Part: Lug mount version 80855BNVA-A12, tacho able, evaporative cooling motor
