Vendor: RCG

SKU: RCT85-7504S-ODP-B02CBT

$323.00

Available in stock (33)

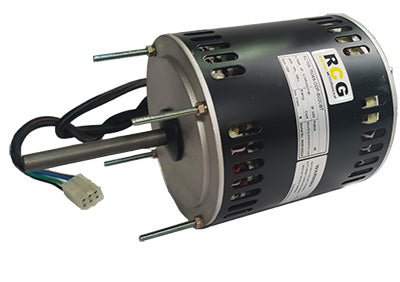

RCG 85 750W 4p B48 CW reversible band mount shaft up extended through bolts

The motor is used on Evaporative Cooling units that are mounted by the extended through bolts with the shaft pointing up. This RCT 85 model comes with superior F Class Insulation giving an edge on the competition.

FEATURES

Clockwise at drive-end shaft
Low noise and long-life bearings
Auto-reset thermal overload
B48 turbo
Four pole
Clockwise and reversible
Variable speed
Band mounted shaft up
Extended through bolts
High-temperature grease
Interchangeable with other brands
Permanent split-capacitor design
CE certified
Reversible by relocating rotor

SPECIFICATIONS

Watts out: 750

Amps: 5.74

Rpm: 1300

Speed: Variable

Capacitor size: 20uF/440 volts

Capacitor supplied: Yes

Rotation direction: Clockwise

Volts: 240

EQUIVALENT

Fasco part: 80855BQVA-A18, 80855BQVA-A26

TAC part: EVA-VS-750
