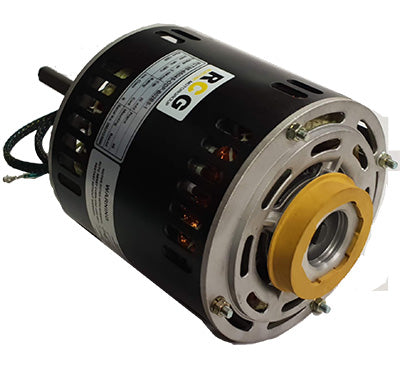

RCG 85 650W 4p extended NDE shaft/rear-end shield tacho groove variable speed

The RCG electric motors are specifically designed for Royce Cross Group and Australian conditions. This RCT85 series air movement motor has an extended NDE-shaft and macho groove in rear end shield for accurate speed control. It is commonly used in Evaporative Heating applications

FEATURES

• Variable speed
• Single phase
• Four pole
• Extended non-drive end shaft
• Tacho groove in rear end shield
• Reversible by relocating rotor
• Interchangeable with other brands
• CE certified
• Designed to international standards
• 12-month warranty

SPECIFICATIONS

Watts out: 650

Amps: 5.19

Rpm: 1350

Speed: Variable

Capacitor size:  25uf/440 volts

Capacitor supplied: No

Rotate direction: Clockwise

Reverse: Can be reversed by reversing rotor

Volts: 240

Shaft diameter: 1/2"

EQUIVALENT

Fasco part: 80855BPVA-A12 (Evaporative Heating)
