Vendor: RCG

SKU: RCT85-6004S-ODP-B02CBT

$295.00

Available in stock (33)

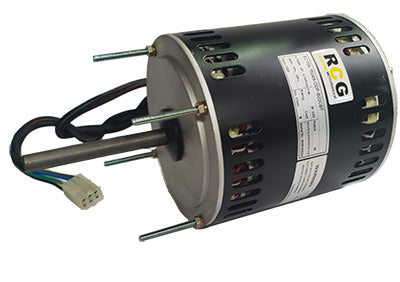

RCG 85 600W, variable speed band mount shaft up extended through bolts

The motor is used on evaporative cooling units that are mounted by the extended through bolts with the shaft pointing up. The RCG 85 model comes with superior F class insulation, providing an edge on comparative motors.

FEATURES

Extended through bolts
Mounted shaft up
Four pole
Turbo
Variable speed
Single shaft
Single phase
Clockwise at drive-end shaft
High-temperature grease
Low noise and long-life bearings
Auto-reset thermal overload
Interchangeable with other brands
Permanent split-capacitor design
CE certified
Reversible by relocating rotor

SPECIFICATIONS

Watts out: 600

Amps: 4.30

Rpm: 1300

Speed: Variable

Capacitor size: 20uF/440 volts

Capacitor supplied: No

Rotation direction: Clockwise

Volts: 240

Shaft diameter: 1/2"

EQUIVALENT

Fasco part: 8061S161-01

TAC part: EVA-VS-600
