Vendor: RCG

SKU: RCT85-5504S-ODP-B02

$324.50

Tax included.

Available in stock (48)

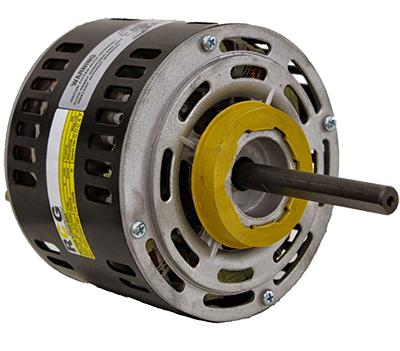

RCG 85 4p 1200rpm 3spd 550W single shaft multi speed

The RCG 85 series fan motor has been designed for a variety of air movement applications, including ducted heating and evaporative cooling systems. the b lower motors in the RCT85 single-shaft range have been designed to meet industry standards and are interchangeable with existing models and brands.

FEATURES

Dynamically balanced rotors
Low noise bearings
permanent split capacitor design
Interchangeable with other brands
Auto reset thermal overload
Capacitor supplied
Single phase
Three-speed tapped winding
Design suitable for Triac control (on request)
Designed to international standards
Resilient mount (cradle not supplied)
12-month warranty

SPECIFICATIONS

Watts out: 600

Amps: 4.4

Rpm: 1200

Speed: Three

Horsepower: 3/4

Cap size: 15uF/440 volts

Reversible: Yes

Volts: 240

Shaft diameter: 1/2"

EQUIVALENT

Fasco/Betts part: 8061S082-03, 8061S082-17, 8061S082-24, 48S6001-11

Kultorn part: KHF2T4703

Techtop: TBR4A060BSM
