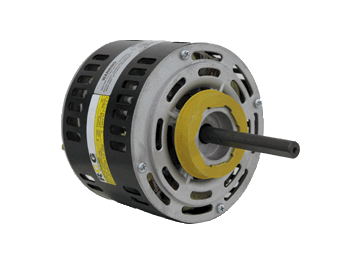

RCG 85 315w 4p 1200 3spd single shaft
The RCG 85 series fan motor has been designed for a variety of air movement applications, including ducted heating and evaporative cooling systems. the b lower motors in the RCT85 single-shaft range have been designed to meet industry standards and are interchangeable with existing models and brands.
FEATURES
- Dynamically balanced rotors
- Low noise bearings
- permanent split capacitor design
- Interchangeable with other brands
- Auto reset thermal overload
- Three-speed tapped winding
- Single phase
- Multi speed
- Design suitable for Triac control (on request)
- Designed to international standards
- Resilient mount (cradle not supplied)
- 12-month warranty
SPECIFICATIONS
Watts out: 315
Amps: 2.5
Rpm: 1350
Speed: Three
Capacitor size: 4/440 uF/V
Capacitor supplied: No
Reversible: Yes
Volts: 240
REPLACEMENT FOR:
Fasco/Betts part: 8061S109-03 / 8061S109-07 / 808555NVA-A13
Kultorn part: HF2J4701K
Techtop: TBR4031RSM
MULTIPLE WATTAGES
This motor is able to be used to replace multiple wattage's by changing the capacitor size:
Capacitor 2uF = 290W
Capacitor 4uF = 315W
Capacitor 6uF = 350W
Capacitor 8uF = 365W
Capacitor 10uF = 425W
