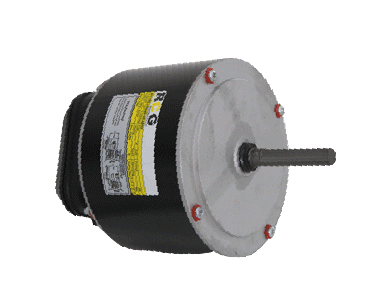

RCG 85 250W 910rpm single shaft 6p 4uf/440V cap

The RCG electric motors are specifically designed for Royce Cross Group and Australian conditions. This RCT85 series single-shaft air movement motor is designed for a variety of outdoor applications, including condensing units and ventilation systems.

FEATURES

• Low noise bearings
• Auto reset thermal overload
• Interchangeable with other brands
• Permanent split-capacitor design
• Totally enclosed
• No terminal box
• Single shaft
• Single speed
• Capacitor supplied
• CE certified
• Designed to international standards
• 12-month warranty

SPECIFICATIONS

Watts out: 300

Amps: 2.7

Rpm: 910/860/810

Horsepower: 1/5

Phase: Single

Speed: Three

Cap size: 6uF/440V

Rotate direction: clockwise (can be mechanically reversed by reversing rear)

Reversible: Yes / mechanically

Volts: 240

EQUIVALENT
