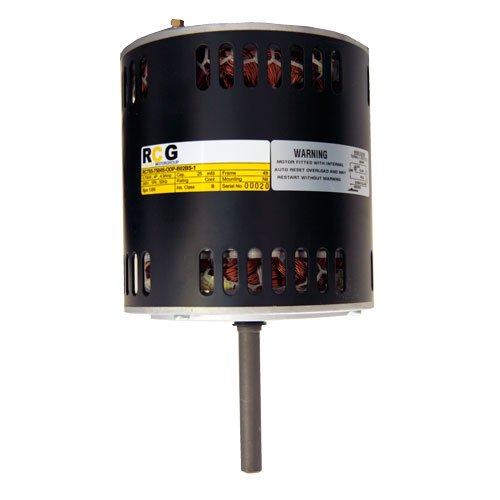

RCG 85 250W V/S extended NDE-shaft, rear-end shield tacho groove

The RCG 85 series electric motor has an extended non-drive end shaft and tacho groove in its rear end shield for accurate speed control. Commonly used in shaft up variable speed evaporative heating applications, this motor comes with closed drive-end end shield. The RCG 85 range is specifically made for Royce Cross Group to suit Australian conditions.

FEATURES

• Interchangeable with other brands
• Extended non-drive end shaft
• Tacho groove in rear end shield
• Four pole
• Single phase
• Variable speed
• Reversible by relocating rotor
• CE certified
• 12-month warranty

SPECIFICATIONS

Watts out: 250

Amps: 2

Rpm: 1350

Speed: Variable

Capacitor size: 4uf/440V

Capacitor supplied: No

Rotation direction: Clockwise

Reversible: Can be reversed by reversing rotor
Volts: 240

EQUIVALENT

Fasco part: 808554MVA-A13 (evaporative heating)
