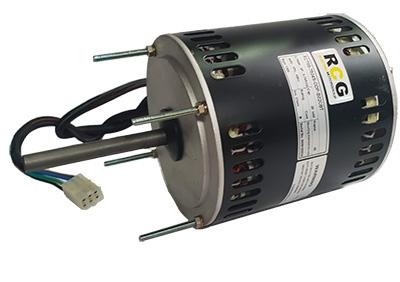

RCG 85 1000W band-mount shaft up extended bolts 4p

This 1000-watt, single-phase, variable-speed 1300rpm fan motor is band mounted shaft-up with extended through bolts. As part of the RCG 85 range, the RCG motor boasts quality at exceptional price. The RCG fan motor range is made especially for the Royce Cross Group to meet Australian conditions.

FEATURES

• Superior F class insulation
• High temperature bearing grease
• Clockwise at drive-end shaft
• Low noise and long-life bearings
• Auto-reset thermal overload
• Interchangeable with other brands
• Permanent split-capacitor design
• CE certified
• Reversible by relocating rotor
• Four pole
• Variable speed

SPECIFICATIONS

Watts out: 1000

Amps: 7.19

Rmp: 1300

Speed: Variable

Capacitor size: 30/440 uf/V

Capacitor supplied: No

Rotation direction: Clockwise

Volts: 240

EQUIVALENTS

Fasco part: 80855BRVA-A18

TAC part: EVA-VS-1000
