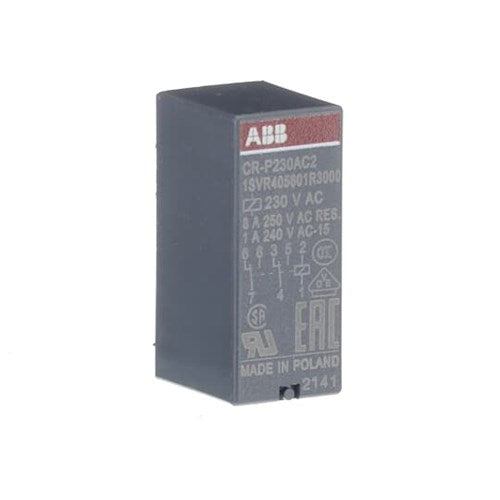

Pluggable interface relay 240V AC 2C/O 8 amps

Operating with a 24-volt DC rated control supply voltage, the CR-P230AC2 pluggable interface relay operates with a 230-volt AC-rated control supply voltage.

Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.

SPECIFICATIONS

Function: Pluggable pcb interface relay CR-P

Sub-function: Relay w/o bilt-in LED

Output: 2 c/o (SPDT) contacts

Output signal: 250 volts/8 amps

Rated control supply voltage: 250 volts AC

Width: 12.7mm

Height: 15.7mm

Depth: 29mm

Weight: 0.014kg

Units: Each
