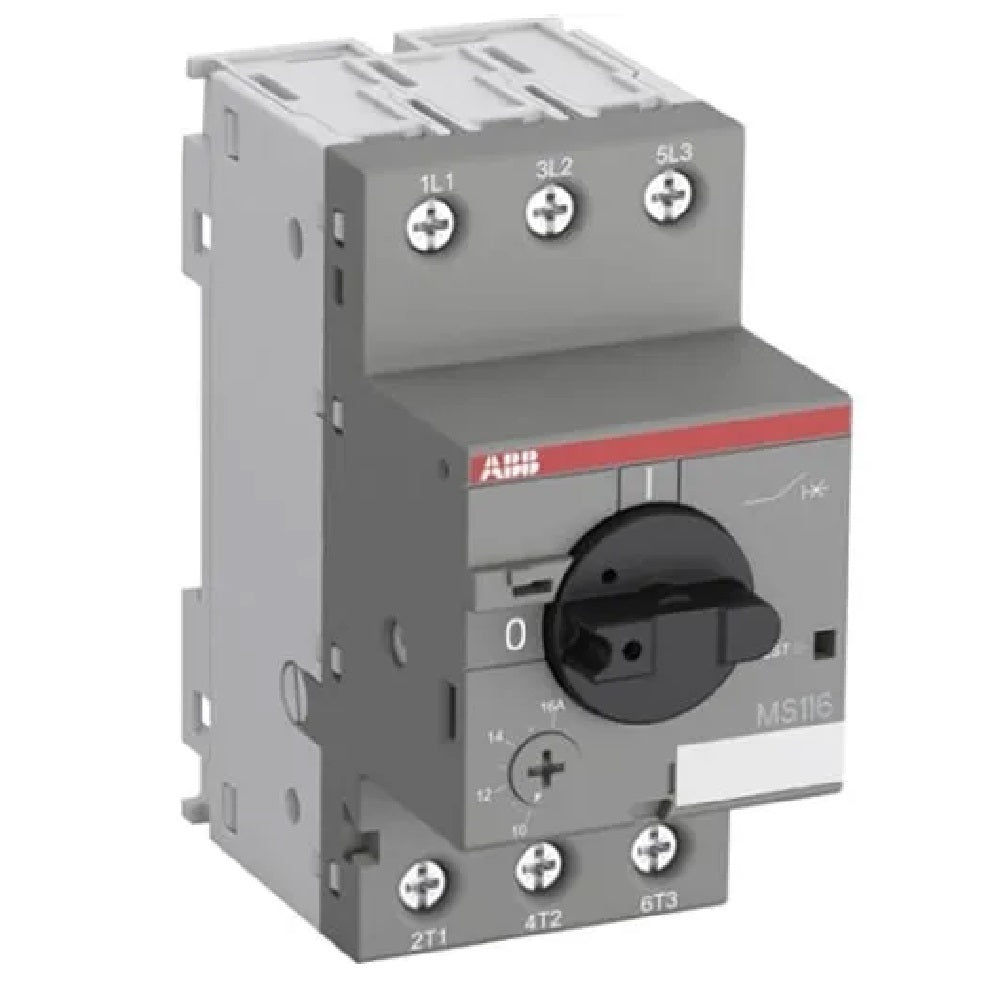

MS116 manual motor starter - 1.6-2.5 amps

Compact and reliable, ABB's MS116-2.5 manual motor starter boasts IP20 protection against solid objects and complies with IEC/EN and UL standards. Used to switch motors on and off as well as protect them without the need for a fuse from short circuits, overload and phase failures, this device boasts a rated operation current of Ie = 2.5 amps.  Among its many features are built-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear swicth position indication.

The manual motor starter is suitable for three-phase and single-phase applications.

Manual motor starters are also known as motor protection circuit breakers or manual motor protectors.

SPECIFICATIONS

Type: Manual motor starter

Actuator type: Rotary handle

Control element type: Turn button

Electrical connection: Screw

Switching type: Thermomagnetic

Terminal type: Screw

Poles: 3

Breaking capacity: 75kA

Current setting range: 1.6 to 2.5 amps

Current rating: 2.5 amps

Insulation voltage rating: 690 volts

Voltage rating: 690 volts

Power rating: 0.75kW

Power loss: 5.4 watts

Short circuit current rating: 31.3 amps

Main circuit connecting capacity: Flexible with ferrule 1/2 x 0.75-2.5sq mm, flexible with insulated ferrule 1/2 x 0.75-2.5sq mm, flexible 1/2 x 0.75-2.5sq mm, rigid 1/2 x 1-4sq mm

Overload release current setting: 1.6 amps

Operational temperature: -25 to 70 degrees Celcius

Thermal overload protection: Yes

Tightening torque: 0.8 to 1.2 N-m

Wire stripping length: 9mm

Protection rating: IP20

Depth: 85.6mm

Height: 90mm

Width: 45mm

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L

Weight: 0.28kg

Units: Each
