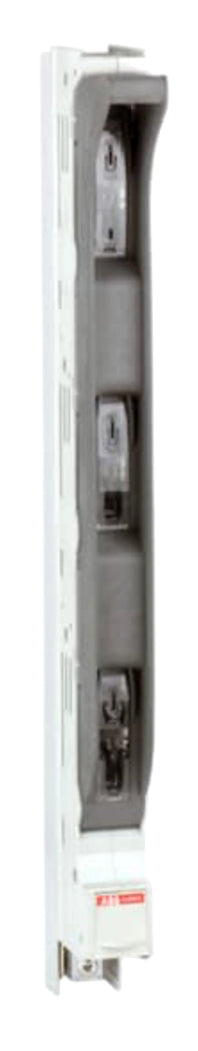

Inline fuse switch disconnector - 160A XLB00, 3P-Z

FEATURES

• Three pole
• Includes six M8 x 16mm bolts

SPECIFICATIONS

Rated operational current AC-21B (Ie): (690 volts) 125 amps

Rated operational current AC-22B (Ie): (500 volts) 160 amps; (800 volts) 63 amps

Rated operational current A-23B (Ie): (400 volts) 125 amps

Rated impulse withstand voltage: 8kV

Rated operational voltage: Main circuit 50/60kV

Handle type: 3P

Fuse size: NH00

Mounting type: 185mm Z-Busbar/support mounting facilities

Number of poles: 3

Degree of protection: according to IEC 60529 IP30

Terminal type: Bolt

Width: 105mm

Height: 187mm

Depth/width: 90mm

Weight: 0.55kg

Units: Each
