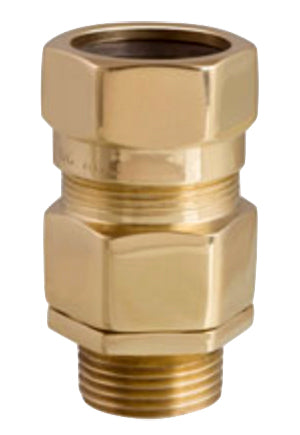

IGCW gland for armoured cable IP66 14.5-20mm M20

The IGCW cable gland provides mechanical retention, a weatherproof seal on the cable's outer sheath and earth continuity through armour wire termination.

FEATURES

• Suitable for steel wire armoured cable types (SWA)
• Suitable for indoor and outdoor applications

SPECIFICATIONS

Material: Nickel-plated brass

Gland size: 20L

ISO: M20

Operating temperature: -60C to +150C

Standard: B.S. 6121 Part 1: 1989

Ingress protection: IP66

Entry thread diameter (C): 20

Entry thread minimum length (E): 10

Diameter - maximum (A): 14.5mm

Diameter - minimum (B): 20.5mm

Armour thickness: 0.9 to 1.25

Across flat: 25.5

Across corner: 28.5

Brand: Crouse-Hinds

Units: Each
