IGA2 gland for non-armoured cable IP66 36.5-44mm M50

The IGA2 cable gland provides mechanical retention and a weatherproof seal on the cable's outer sheath.

FEATURES

• Suitable for non-armoured cable types
• Suitable for indoor and outdoor applications

SPECIFICATIONS

Material: Nickel-plated brass

Gland size: 50L

ISO: M50

Operating temperature: -60C to +150C

Standard: B.S. 6121 Part1: 1989

Ingress protection: IP66

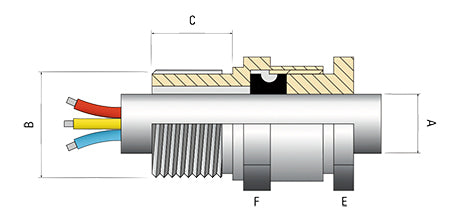

Entry thread diameter (B): 50

Entry thread minimum length (C): 15

Diameter: 36.5mm to 44mm

Across flat: 61.5

Across corner: 68

Brand: Crouse-Hinds

Units: Each
