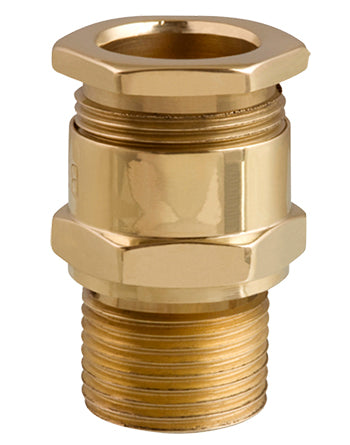

IGA2 gland for non-armoured cable IP66 11-14mm M20

The IGA2 cable gland provides mechanical retention and a weatherproof seal on the cable's outer sheath.

FEATURES

• Suitable for non-armoured cable types
• Suitable for indoor and outdoor applications

SPECIFICATIONS

Material: Nickel-plated brass

Gland size: 20L

ISO: M20

Operating temperature: -60C to +150C

Standard: B.S. 6121 Part1: 1989

Ingress protection: IP66

Entry thread diameter: 20

Entry thread minimum length: 10

Diameter: 11mm to14mm

Across flat: 24

Across corner: 26.5

Units: Each
