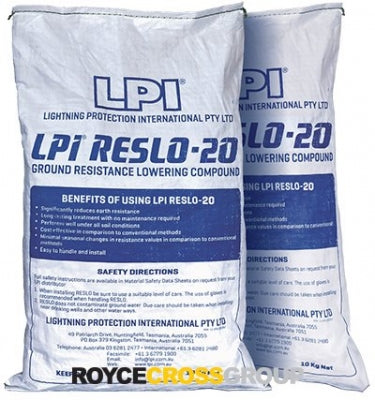

Bentonite-based earth enhancement compound

Applying earth-enhancing compounds around earthing conductors in an earthing system aids significantly in achieving the desired low-level resistivity levels required for an effective earthing system. It reduces earth resistance and is effective under varying soil conditions.

SPECIFICATIONS

Type: Bentonite-based earth enhancing compounding

Application: To assist in achieving an earth resistance of less than 10 Ohms

Units: 20kg bag

RECOMMENDATIONS

For backfilling a typical trench installation with RESLO-20, use:

ONE BAG

• Trench with 300mm width and 5m length

TWO BAGS

• Trench with 300mm width and 10m length

For backfilling an earth rod installation with RESLO-20, use:

ONE BAG

• Hole with 75mm diameter, 1800mm-3000mm depth
• Hole with 125mm diameter, 1800mm-2400mm depth

TWO BAGS

• Hole with 125mm diameter, 3000mm depth

THREE BAGS

• Hole with 175mm diameter, 3000mm depth
