Vendor: CCG

SKU: CCG-052300

$26.61
$26.61

Available in stock (10)

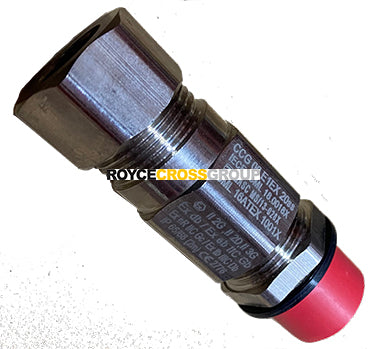

E1EX SWA M20 gland 3-8.5mm inner; 8-13.5mm outer - Ex de IIC Gb / Ex tb IIIC Db

The E1EX captive component cable with variable dual seal for steel and aluminium armoured cable is for use indoors, outdoors, group II, III, zone 1, 2, 21 and 22 hazardous areas.


FEATURES

  • Two part handling, no loose parts

SPECIFICATIONS

Type: E1Ex

Gland material: Brass (marine-grade electroless nickel plated

Seal material: Standard thermoset elastomer or extreme temperature seals

Cable type: Steel wire armour and aluminium armour

Gland size reference: 00-20ss

Metric entry size: M20 x 1.5

Units: Each
GLAND [Ex] SWA, Inner: 3.0 - 8.5mm / Outer: 8.0 - 13.5mm, M20 (E1EX)

GLAND [Ex] SWA, Inner: 3.0 - 8.5mm / Outer: 8.0 - 13.5mm, M20 (E1EX)
