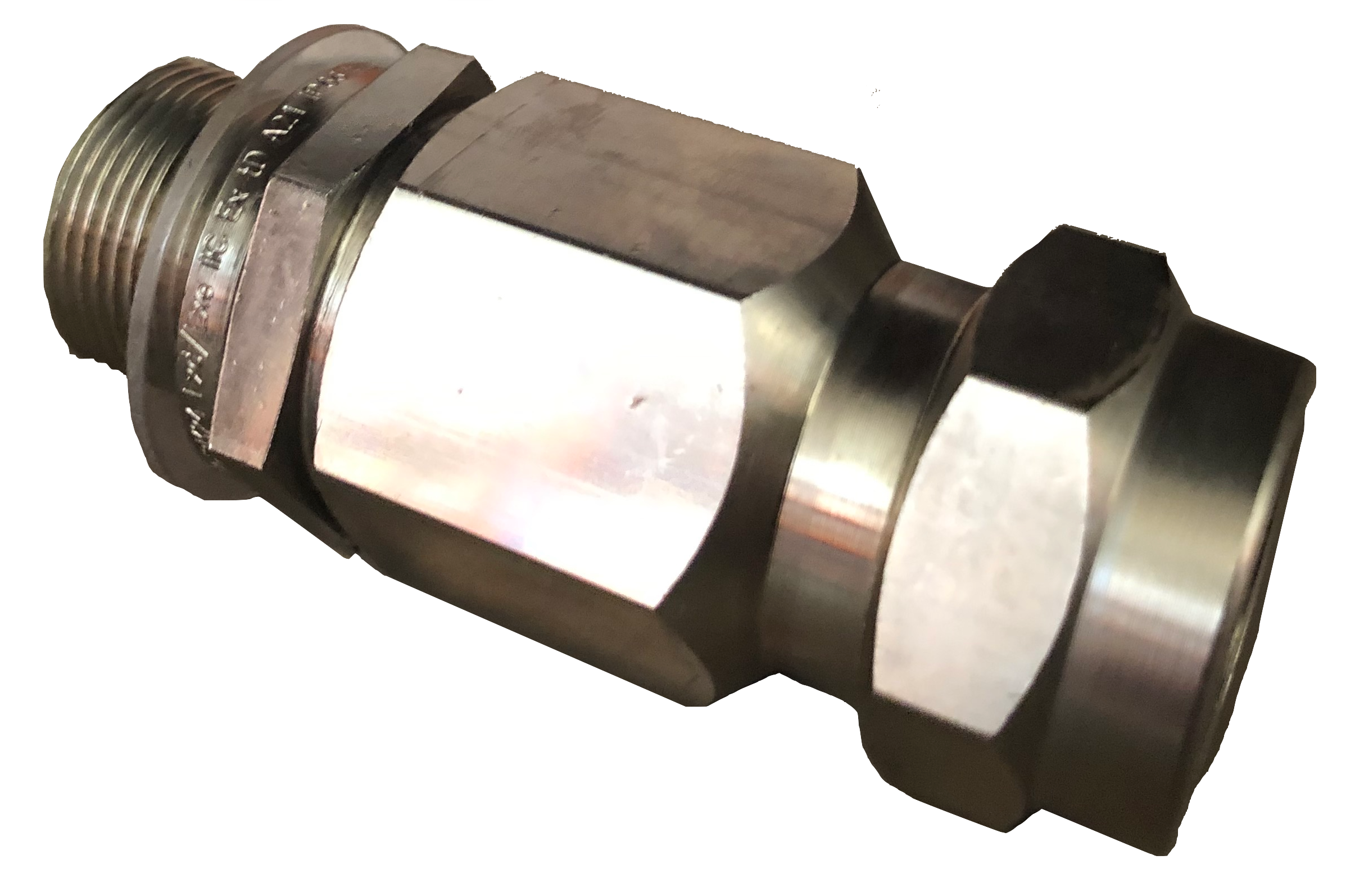

19-24mm M25 Ex d IIC SWA gland

The Eaton Crouse-Hinds cable glands are used in hazardous, industrial and commercial applications.

The gland is used for the termination of steel wire armoured cables.

Contact Royce Cross Group for other thread types.

FEATURES

• Ex d Ex e Ex ID protection
• IP66/67 degree of protection
• IIC gas group

SPECIFICATIONS

Type: TWAX Terminator cable gland

Gland entry size metric: 25

NPT entry size: 3/4"

Actual diameter under armour (min/max): 13.5mm/16.9mm

Actual diameter overall (min/max): 19.5mm/23.8mm

Wire armour diameter (min/max): 1.25mm/1.6mm

Gland entry length: 16mm

Gland projected length: 67mm

Hexagon size across flat: 33.3mm

Hexagon size across corners: 38.4mm
