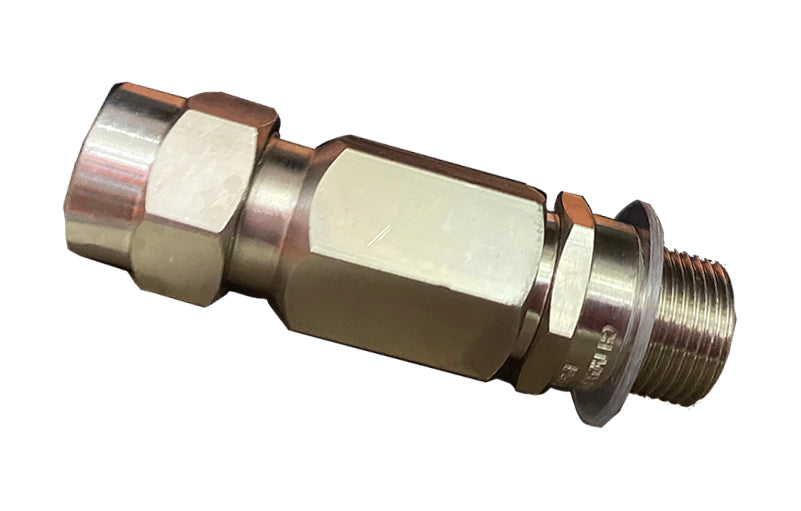

10-13mm M20 Ex d IIC SWA gland

The Eaton Crouse-Hinds cable glands are used in hazardous, industrial and commercial applications.

The gland is used for the termination of steel wire armoured cables.

Contact Royce Cross Group for other thread types.

FEATURES

• Ex d Ex e Ex ID protection
• Ip66/67 degree of protection
• IIC gas group

SPECIFICATIONS

Type: TWAX Terminator cable gland

Gland entry size metric: 20

NPT entry size: 1/2"

Actual diameter under armour (min/max): 6.3mm/8.6mm

Actual diameter overal (min/max): 10.2mm/13.2mm

Wire armour diameter (min/max): 0.9/1.25mm

Gland entry length: 14mm

Gland projected length: 52mm

Hexagon size across flat: 23.3mm

Hexagon size across corners: 26.9mm

Units: Each
