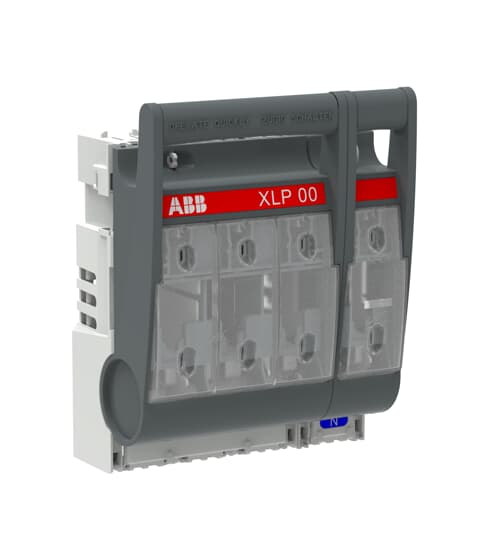

Easyline fuse switch disconnector - 160A, 3-pole

FEATURES

• Three pole
• Includes six M8 x 16mm bolts

SPECIFICATIONS

Rated operational current AC-21B (Ie): 125 amps

Rated operational current AC-22B (Ie): (500 volts) 160 amps; (800 volts) 63 amps

Rated operational current A-23B (Ie): (400 volts) 125 amps

Rated impulse withstand voltage: Main circuit 8kV

Rated operational voltage: 400 V AC, 500V AC, 690V AC

Rated frequency (f): Main circuit 50/6

Mounting type: Base plate

Width: 105mm

Height: 187mm

Depth/width: 90mm

Weight: 0.63kg

Units: Each
