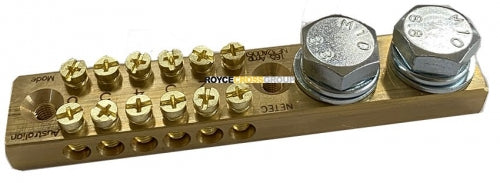

165-amp 6-way earthing bar - 2xM10

The Australian-manufactured earthing bar boasts six-way tunnels, which offer two screws per tunnel. It accepts cables up to 16mm². Flat and spring washers are included.

FEATURES

• Standard numbering
• Made to AS/NZS5112:2015 standard

SPECIFICATIONS

Type: Earthing bar

Variant: 2 x M10

Current rating: 165 amps

Brass section: 19mm x 9.5mm

RoHS compliant: Yes

Length: 103mm

Mount hole type/apart: M5 countersink - 50mm

Stud spacing: 21.5mm

Units: Each
