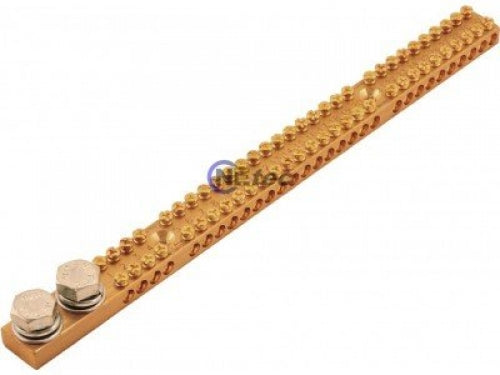

165-amp 36-way earthing bar 2xM10

The Australian-manufactured earthing bar boasts 36-way tunnels.

FEATURES

• 2 x M10 studs
• 36-way
• Standard numbering
• Includes flat and spring washers
• Two screws each tunnel
• Accepts up to 16mm2 cables
• Made to AS/NZS5112:2015 standard

SPECIFICATIONS

Current rating: 165 amp

Brass section: 19mm x 9.5m

RoHS compliant: Yes

Length: 311mm

Mount hole type/apart: M5 countersunk - 120mm

Stud spacing: 21.5mm

Units: Each
