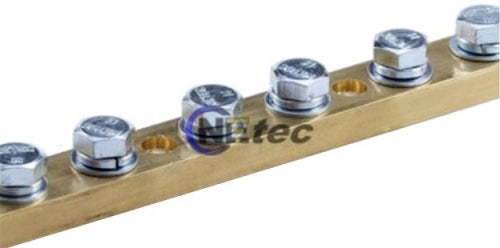

165-amp stud-only earth/neutral bar - 12xM8 studs with feet

The Australian-manufactured stud-only earth/neutral bar comes with feet.

FEATURES

• 12 x M8 studs
• Flat and spring washes included
• Insulation feet fitted
• Made to AS/NZS5112:2015 standards

SPECIFICATIONS

Current rating: 165 amp

Brass section: 19mm x 9.5mm

RoHS compliant: Yes

Length: 323.5mm

Mount type: M5 countersunk - 55mm - 108mm - 55mm

Stud spacing: 25mm (stud centre to stud centre)

Units: Each
