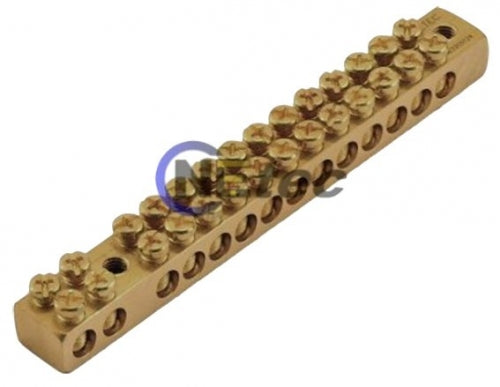

12-way numbered 100-amp earth bar 2x16mm

The Australian-made earth bar is 100 amps.

FEATURES

• Two main tunnels and 12 circuit tunnels numbered 1 to 12
• Two screws each tunnel
• All tunnels (6.0) accept up to 16mm2 cables
• Dome point screws

SPECIFICATIONS

Current rating: 100 amp

Brass section: 12.7mm x 9.53mm (1/2 x 3/8)

RoHS compliant: Yes

Length: 106mm

Mount hole type/apart: M5 - 82.55mm

Units: Each
