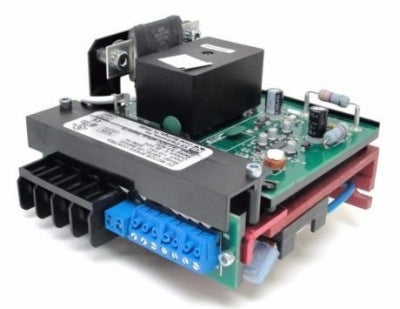

DC SCR chassis relay reversing, 230 VAC to 1.5hp, 3hp 180 VDC ARM controller

The chassis drive is a compact version of the KBCC "R" control. With built-in terminal blocks and its small size, teh control is ideal for use where space is at a premium.

Equipped with a built-in dynamic brake resistor, ACCEL and DECEL trimpots, the control includes a 5k ohm potentiometer. It requires a plug-in horsepower resistor to operate.

FEATURES

• Compact model
• Includes an AC line fuse and an armature fuse holder
• Contains auto inhibit for smooth, safe start during rapid switching of the AC line.
• Rated for 3 horsepower motors

SPECIFICATIONS

Voltage: 230

Option: Auxiliary heat sink
