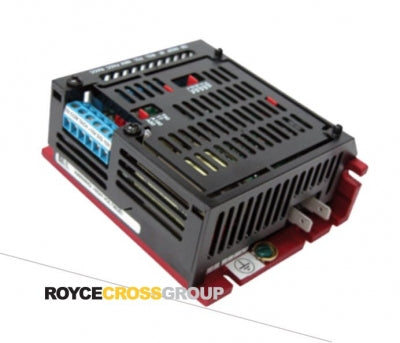

DC SCR chassis regen reversing, 115/230 VAC to 1/6hp, 90/180 VDC ARM controller

Compact in size, the controller is a full-wave regenerative drive capable of operating DC, PM or shunt motors in a bidirectional mode.

They are suitable for use with conveyors, indexers, feeders positioners, textile equipment, packaging machinery, web control and converting machinery.

FEATURES

• Quadrant operation
• Forward and reverse torque in both speed directions
• Compact line-regenerative
• Reversing SCR speed control
• Ideal for forward-brake-reverse applications

SPECIFICATIONS

Voltage: 115 to 230

AC line current: 1.5 RMS amps

DC line current: 1.0 RMS amps
