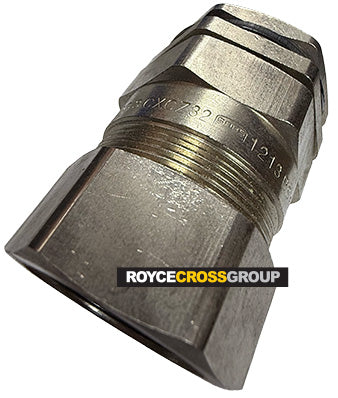

M32 CX/CZ gland - 26.5mm-33.5mm

The captive component gland can be used indoors and outdoors. It is for use with braided and steel tape cable.

FEATURES

• Two-piece handling, no loose parts

SPECIFICATIONS

Type: CX/CZ gland

Use: For braided and steel tape cable

Protection rating: IP66

Gland size reference: 3-32

Metric entry thread: M32 x 1.5

NPT entry thread: 1/1¼ / 19

Cable maximum inner: 26.5mm

Outer: 23mm to 30.5mm

Maximum length: 65mm

Installation torque: 70Nm

Units: Each
