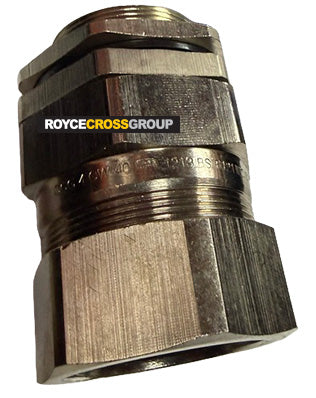

CW captive component gland: M40 33-42.5mm IP66

Suitable for indoor and outdoor use, the captive component gland for SWA and aluminium armoured cable provides a seal on the outer sheath of the cable, sealing to IP66.

SPECIFICATIONS

Type: CW captive component gland for SWA

Gland material: Brass (nickel plated) BS 2874, EN 12164, aluminium ASTM B221, stainless steel 316

Seal material: Thermoset elastomer or silicon on request

Cable type: Steel wire armour/aluminium armour wire

Armour clamping: Captive rotating cone

Sealing area: Outer sheath

Optional accessories: Adaptor, earth tag, locknut, reducer, serrated washer, shroud

Gland size reference: 4-40

Metric entry thread (C): M40x1.5

Metric entry thread minimum (D): 15

NPT entry thread (C): 1 1/4, 1 1/2

NPT entry thread minimum (D): 19/21

Cable detail: Max A - 34; min B -  33; max B - 42.5;

Maximum length (E): 68

Armour diameter: min F - 1.6; max F - 2

Units: Each
