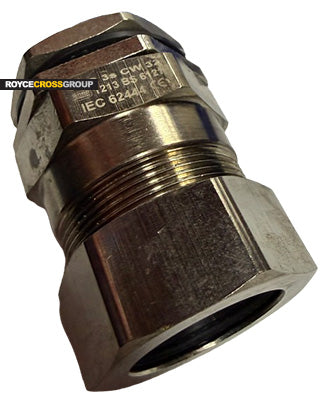

CW captive component gland: SWA M32

Suitable for indoor and outdoor use, the CW captive component gland for steel wire and aluminium armoured cable boasts two-piece handling with no loose parts. It provides a seal on the outer sheath of the cable sealing to IP65/66

SPECIFICATIONS

Type: CW captive component gland

Gland size reference: 3s-32s

Metric entry thread: M32 x 1.5; min D 10mm

NPT entry thread: C - 1 / 1 1/4; min D 19

Cable detail: max A - 22mm; min B 23mm; max B 30.5mm

Maximum length E: 57mm

Armour diameter: min F 1.60mm; max F - 2mm

Hexagonal detail: max 'flats' - 42mm; max 'crns' 47mm

Install torque value: 70Nm

Units: Each
CW gland [IP65/66] SWA, M32: inner: 22.0mm max; outer: 23.0 - 30.5mm

CW gland [IP65/66] SWA, M32: inner: 22.0mm max; outer: 23.0 - 30.5mm
